180P/M 18 Head Multihead Weigher With Step Motor Driving System

China Guangdong Kenwei Intellectualized Machinery Co., Ltd. certification
China Guangdong Kenwei Intellectualized Machinery Co., Ltd. certification
Help customers to improve competitive power and profitable ability by providing quality machines, best service, and faster innovation.

—— Cathy

Try the best to make customers are satisfied and successful.

—— John

Kenwei 's weighing equipment has solved a big problem for me and improved my production efficiency.

—— Mr.Louis

I'm Online Chat Now

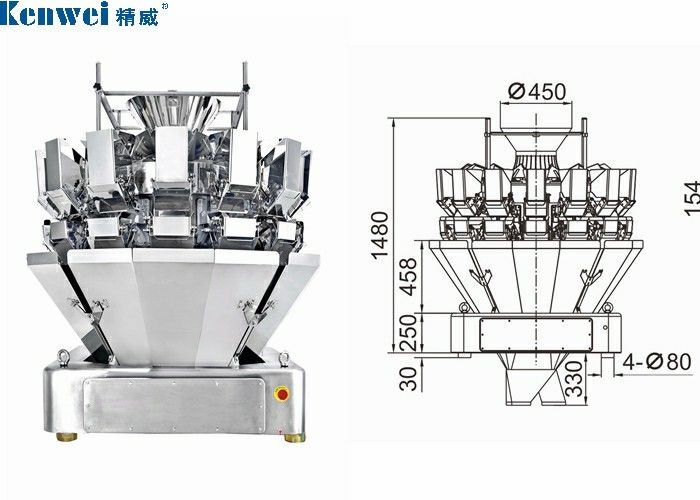

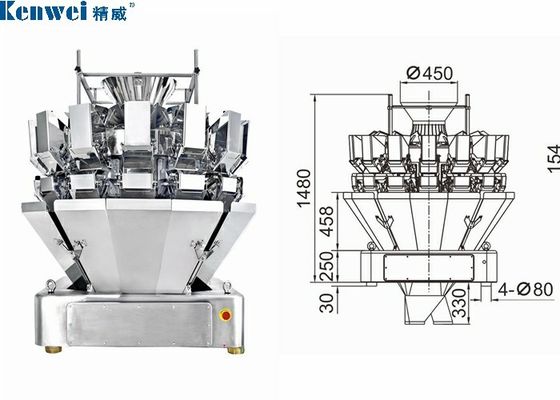

180P/M 18 Head Multihead Weigher With Step Motor Driving System

180P/M 18 Head Multihead Weigher With Step Motor Driving System
180P/M 18 Head Multihead Weigher With Step Motor Driving System

Large Image :  180P/M 18 Head Multihead Weigher With Step Motor Driving System

Product Details:
Place of Origin: Guangdong,China
Brand Name: Kenwei
Certification: CE,SGS,OIML
Model Number: JW-A18
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD4000-4300
Packaging Details: Wooden Crate Package
Delivery Time: 20-45 working day
Payment Terms: L/C, T/T
Supply Ability: 800 set per/year
Detailed Product Description
Identify Code: A18-3-1 Weighing Range: 10-1000g
Accuracy: X(0.5) Max Speed: 180P/M
Hopper Volume: 2.0L Control Panel: 10.1”Touch Screen
Options: Dimple Plate/Timing Hopper/Printer/Reject Device Packing Dimension(mm): 1950(L)x1650(W)x1650(H)
Gross Weight: 800kg Power Requirement: 220V/1000W/ 50/60Hz/10A
Driving System: Step Motor
High Light:

18 Head Multihead Weigher

,

180P/M Multihead Weigher

,

Step Motor Driven Kenwei Multihead Weigher

Kenwei 18 Head High Speed Multihead Weigher




The 3rd generation standard high-speed multihead weigher is a highly integrated modular design, and the installation, commissioning and maintenance of mechanical and electronic components are simpler. At the same time, the use of high-speed springless hopper eliminates the potential safety hazard of springs falling into the package after fatigue breakage. Double-layer cutting chute combined with high-speed collecting hopper alternately discharges, so that the speed of feeding is accelerated, thereby increasing the speed of weighing.




Features



1. special load cell with high precision and high standard.

2. Intelligent fault alarm, convenient maintenance.

3. High speed staggered discharging function, effectively prevent blocking materials.

4. With high integrated modular design makes mechanical and electronic components easy to install and maintain.

5. Modbus industry-standard communication protocol, realize the interface combination of multi-head weigher and packaging machine.






Mechanical character


1. High-speed hoppers without springs to avoid the broken spring falling into packages.

2. New springless actuator design makes weighing more stable and fast.

3. Double-layer discharge chutes with double high-speed timing hoppers to feed packaging machine in turn, surmount the speed problems of discharging chute feeding time.

4. Machine case and middle seat integral welding greatly enhance the strength of the machine, makes the hopper shorter stable time.





Technical specification



Model JW-A14 JW-A18
Identify Code A14-3-1 A18-3-1
Weighing Range 10-1000g 10-1000g
Accuracy X(0.5) X(0.5)
Max Speed 130P/M 180P/M
Hopper Volume 2.0L
Control Panel 10.1” Touch Screen
Options Dimple Plate/Timing Hopper/Printer/Reject Device
Driving System Step Motor
Power Requirement 220V/1000W/50/60Hz/10A 220V/1000W/50/60Hz/10A
Packing Dimension(mm) 1760(L)x1190(W)x1390(H) 1950(L)x1650(W)x1650(H)
Gross Weight 500kg 800kg





Application



It's suitable for weighing seeds, peanuts, nuts, almonds, raisins, candy, pistachio, potato chips, dumplings, and another granule, sheet, strip, round shape material.





180P/M 18 Head Multihead Weigher With Step Motor Driving System 0




Specialized in the production of automatic weighing and packaging machinery for 14 years, we devote ourselves to the complete solution of automatic packaging. Now we become the professional multihead weigher (linear weigher/check weigher/metal detector etc ) manufacturing enterprise with large production capability and wide influence in the world. We have successively won the “Guangdong Industry-University-Research Science and Technology Project Award”, “high technology enterprise”, “Technology Innovation Award” in Chinese food processing and packaging industry, Ringier Multihead Combination Weighing Technology Innovation Award, a number of “Utility Model Patent Certificate” and many other honorary certificates.



According to the material characteristics and requirements of different industries, we developed various machine types for counting (small pouches into the big bag), noodles, frozen foods, peppers, stick-shaped products, product -mixing, cheeses, salads and so on. Products are free to choose two kinds of modes combination of operation such as digital and modular, single outlet and multiple discharge outlet, high precision, and high speed. Also, we can develop software system independently to meet more customized requirements for customers.
