Kenwei Leak Proof​ 65P/M Multihead Weigher Machine

Kenwei Leak Proof​ 65P/M Multihead Weigher Machine
Kenwei Leak Proof​ 65P/M Multihead Weigher Machine Kenwei Leak Proof​ 65P/M Multihead Weigher Machine Kenwei Leak Proof​ 65P/M Multihead Weigher Machine

Large Image :  Kenwei Leak Proof​ 65P/M Multihead Weigher Machine

Product Details:
Place of Origin: Guangdong,China
Brand Name: Kenwei
Certification: CE,SGS,OIML
Model Number: JW-A10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD4100-4400
Packaging Details: Wooden Crate Package
Delivery Time: 20-45 working day
Payment Terms: L/C, T/T
Supply Ability: 700 set per/year
Detailed Product Description
Identify Code: A10-1-4 Weighing Range: 20-1000g
Accuracy: X(0.5) Max Speed: 65P/M
Hopper Volume: 1.6/2.5L Options: Dimple Plate/Timing Hopper/Printer/Reject Device
Packing Dimension(mm): 1620(L)x1100(W)x1110(H) Gross Weight: 380kg
High Light:

Leak Proof​ Multihead Weigher Machine


Kenwei​ Multihead Weigher Machine


65P/M multihead weighing machine

Kenwei Leak Proof​ Multihead Weigher Machine



The Kenwei leak proof combination scale is designed for applications that require high accuracy necessities and high production rates. Combination scales have multiple weighing heads that weigh the product. The combination scale adds-up (combines) the weight from many heads to reach a specific weight. The buckets holding the product which add up to the proper weight are then discharged through the scale and to the packaging equipment below the objective was to create a food-safe machine that requires fewer operator interactions. While offering quick serviceability, reliability, accuracy, and speeds.





  1. Linear amplitude can be adjusted independently in the running
  2. Special load cells with high precision and high standard are used.
  3. Program recovery function can reduce operation failures and support multi-segment weight calibration
  4. It can be automatically suspended in case of material shortage to make the weighing more stable.
  5. Many languages are available for global markets.
  6. 100 program capacity can meet various weighing requirements and a user-friendly help menu contributes to easy operation.



Mechanical character

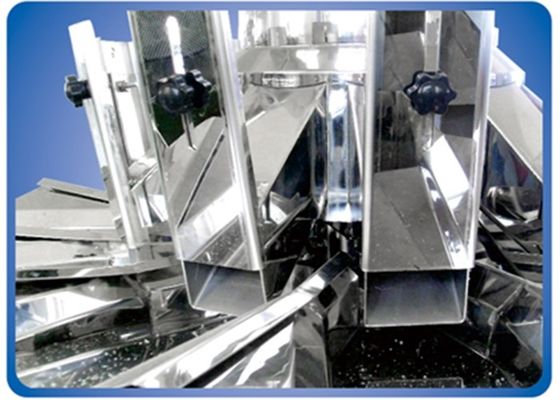

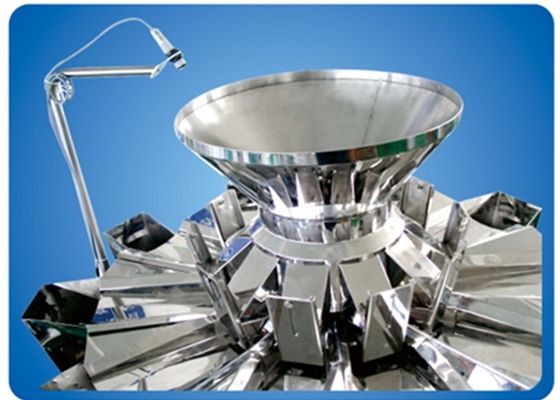

  1. A newly added angle-dividing hopper effectively distributes materials to each line vibrating plate.
  2. Specially made deep U-shaped vibrating plate to avoid materials leaking to both sides of the vibrating plate.
  3. Uniform design standards and the use of mold making technology make the interchangeability of various parts stronger.
  4. Aluminum thickened middle standing enhances the strength of the machine, making the time for stabilizing hoppers much shorter.
  5. Optional weighing material detection is available to accurately control the feeding time and material thickness to ensure weighing accuracy.
  6. Application: It is suitable for weighing small granules such as rice, sugar, fine tea, detergent powder, etc.



Technical specification


Model JW-A10 JW-A14
Identify Code A10-1-4 A14-1-4
Weighing Range 20-1000g 20-1500g
Accuracy X(0.5) X(0.5)
Max Speed 65P/M 120P/M
Hopper Volume 1.6L/2.5L
Control Panel 7'' Touch Screen
Options Timing Hopper/Printer/Reject Device
Driving System Step Motor
Power Requirement 220V/1000V/50/60Hz/10A 220V/1500W/50/60Hz/12A
Packing Dimension(mm) 1620(L)x1100(W)x1110(H) 1700(L)x1100(W)x1265(H)
Gross Weight 380kg 490kg





According to the material characteristics and requirements of different industries, we developed various machine types for counting (small pouches into the big bag), noodles, frozen foods, peppers, stick-shaped products, product -mixing, cheeses, salads and so on. Products are free to choose two kinds of modes combination of operation such as digital and modular, single outlet and multiple discharge outlet, high precision, and high speed. Also, we can develop software system independently to meet more customized requirements for customers.


Specialized in the production of automatic weighing and packaging machinery for 14 years, we devote ourselves to the complete solution of automatic packaging. Now we become the professional multihead weigher (linear weigher/check weigher/metal detector etc ) manufacturing enterprise with large production capability and wide influence in the world. We have successively won the “Guangdong Industry-University-Research Science and Technology Project Award”, “high technology enterprise”, “Technology Innovation Award” in the Chinese food processing and packaging industry, Ringier Multihead Combination Weighing Technology Innovation Award, a number of “Utility Model Patent Certificate” and many other honorary certificates.
