Product Details:
Payment & Shipping Terms:
|
| Identify Code: | A14-1-6 | Weighing Range: | 10-1500g |
|---|---|---|---|
| Accuracy: | X(0.5) | Max Speed: | 60P/M |
| Hopper Volume: | 2.5L | Options: | Timing Hopper/Printer/Reject Device |
| Packing Dimension(mm): | 1750(L)x1160(W)x1420(H) | Gross Weight: | 490kg |
| High Light: | Pasta Combination 14 Head Weigher,Kenwei 14 Head Weigher,2.5L Hopper Multihead Weigher |
||

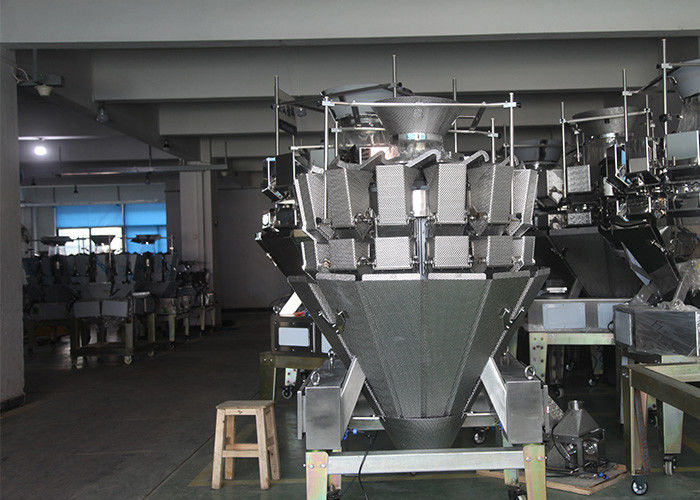

14 Head Kenwei Pasta Combination Weigher Machine
Depending on your exact application requirements, we have a range of different Kenwei pasta combination scales that will fit your needs. The pasta scale adopts an IP65 waterproof case, and the parts in contact with the material are made of checkered plate material. Explore our different combination scale series or contact one of our experts to find the best weighing solution for your product.
Advantage:
Kenwei’s multihead weighers grant high flexibility and the possibility to readjust different products rapidly and with great simplicity.
Kenwei´s advanced multihead technologies reduce the loss of product and lead to excellent precision.
Kenwei´s weighing technologies simplify your weighing and packaging process and enable you to fill up packaging sizes from 10g up to 1500g.
Kenwei’s pasta multihead weighers use a 60° steep discharge chute makes sure products discharge smoothly.
Mechanical character
1.Suitable for products with a max 300mm length.
2.IP65 cabinet design, dimple plates for food contact parts.
3.Air pressure system built-in cabinet prevents the electronic components from damage due to humidity.

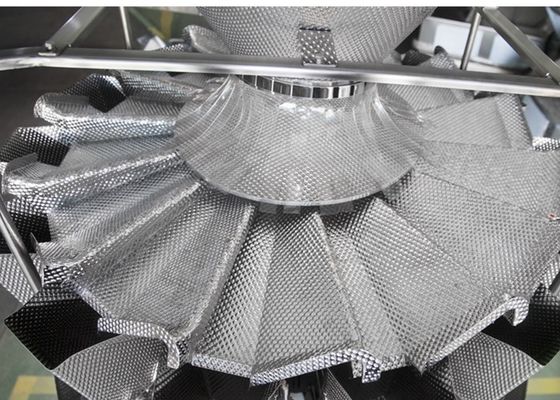

4.Adjustable Rotary top cone to make feeding averagely to each linear pan.
5.Aluminum thickened middle standing enhances the strength of the machine, making the time for stabilizing hoppers much shorter.
6.Application: It is suitable for weighing soft strip products such as noodles, rice noodles, bean sprout, etc.
Technical specification
| Model | JW-A10 | JW-A14 |
| Identify Code | A10-1-6 | A14-1-6 |
| Weighing Range | 10-1000g | 10-1500g |
| Accuracy | X(0.5) | X(0.5) |
| Max Speed | 30P/M | 60P/M |
| Hopper Volume | 2.5L | |
| Control Panel | 7” Touch Screen | |
| Options | Timing Hopper/Printer/Reject Device | |
| Driving System | Step Motor | |
| Power Requirement | 200V/1000W/50/60/Hz/10A | 220V/1500W/50/60Hz/12A |
| Packing Dimension(mm) | 1620(L)x1100(W)x1420(H) | 1750(L)x1160(W)x1420(H) |
| Gross Weight | 380kg | 490kg |
Company Profile
According to the material characteristics and requirements of different industries, we developed various machine types for counting (small pouches into the big bag), noodles, frozen foods, peppers, stick-shaped products, product -mixing, cheeses, salads and so on. Products are free to choose two kinds of modes combination of operation such as digital and modular, single outlet and multiple discharge outlet, high precision, and high speed. Also, we can develop software system independently to meet more customized requirements for customers.
Specialized in the production of automatic weighing and packaging machinery for 14 years, we devote ourselves to the complete solution of automatic packaging. Now we become the professional multihead weigher (linear weigher/check weigher/metal detector etc ) manufacturing enterprise with large production capability and wide influence in the world. We have successively won the “Guangdong Industry-University-Research Science and Technology Project Award”, “high technology enterprise”, “Technology Innovation Award” in Chinese food processing and packaging industry, Ringier Multihead Combination Weighing Technology Innovation Award, a number of “Utility Model Patent Certificate” and many other honorary certificates.
