Product Details:
Payment & Shipping Terms:
|
| Application: | Leisure Food | Weighing Range: | 10-1500g |
|---|---|---|---|
| Head: | 14 Head | Max Speed: | 120P/M |
| Hopper Volume: | 1.6/2.5L | Control Panel: | 7”Touch Screen |
| Options: | Dimple Plate/Timing Hopper/Printer/Reject Device | Power Requirement: | 220V/1500W/50/60Hz/10A |
| High Light: | 1500g Multihead Combination Weigher,Pet Food Packing Multihead Combination Weigher,Leisure Food Packing Multihead Weighing Machine |
||
Product description

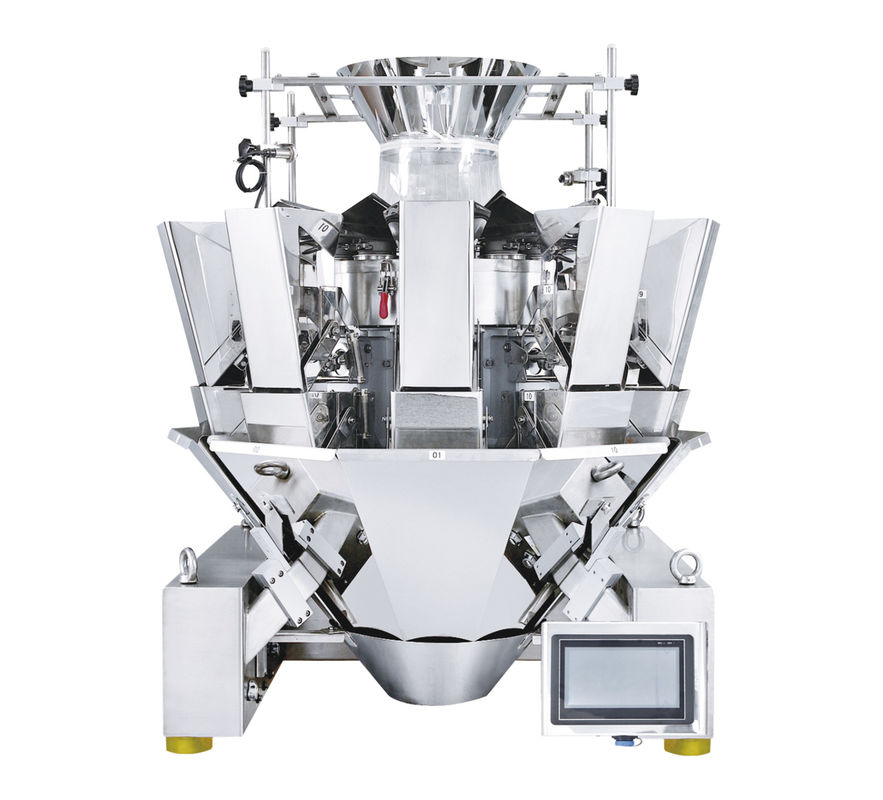

This machine is a combination weigher with 14 hoppers. The hopper has two options for 1.6L/2.5L. It is suitable for weighing various snack foods and has a wide range of applications. Optional weighing type material detection, accurate control of feeding time. The thickness of the material ensures the accuracy of weighing.
Product parameters
|
Model |
JW-A14 |
JW-AM10 |
JW-AM14 |
|
Identify Code |
A14-1-1 |
AM10-1-1 |
AM14-1-1 |
|
Weighing Range |
10-1500g |
100-3000g |
100-3000g |
|
Max Speed |
120P/M |
50P/M |
80P/M |
|
Hopper Volume |
1.6/2.5L |
5L |
5L |
|
Control Panel |
7'' Touch Screen |
7'' Touch Screen |
7'' Touch Screen |
|
Power Requirement |
220V/1500W/50/60Hz/10A |
220V/1500W/50/60Hz/10A |
220V/1500W/ 50/60HZ/12A |
|
Packing Dimension(mm) |
1700(L)x1100(W)x1265(H |
1950(L)X1280(W)X1690(H) |
195(L)X1380(W)X1810(H) |
|
Gross Weight |
490kg |
600kg |
750kg |
|
Options |
Dimple Plate/Timing Hopper/Printer/Reject Device |
Dimple Plate/Timing Hopper/Printer/Reject Device |
Dimple Plate/Timing Hopper/Printer/Reject Device |
|
Driving System |
Step Motor |
Step Motor |
Step Motor |
|
Packing Dimension(mm) |
1700(L)x1100(W)x1265(H) |
1950(L)X1280(W)X1690(H) |
2195(L)X1380(W)X1810(H) |
Product features
1.6L/2.5L hopper, suitable for all kinds of common standard materials, can be used widely
No products auto pause function can improve weighing stability and accuracy
Weighing type for material detection is available, which can make accurate control of feeding time & material thickness and ensure weighing accuracy
Have a stainless steel model and carbon steel model for choose
100 programs capacity can meet various weighing requirements and a user-friendly help menu contributes to easy operation
Product advantages
More than 10 years, we have been adhering to "stability is the key to save" and "professional manufacturing, excellent quality, integrity management" these concepts, and we will make effort to combine weighing packaging technology with advanced automated production systems together, thus create more stable and efficient automatic weighing and packaging systems. Also, we make an effort to promote industrial automation, production cost savings, improve production efficiency, and make unremitting efforts to be an innovative and respected global enterprise.
