| Identify Code: | A10-1-9 | Weighing Range: | 10-1000g |
|---|---|---|---|
| Accuracy: | X(0.5) | Max Speed: | 30P/M |
| Hopper Volume: | 1.6/2.5L | Control Panel: | 7”Touch Screen |
| Options: | Dimple Plate/Timing Hopper/Printer/Reject Device | Power Requirement: | 220V/1100W/50/60Hz/12A |
| High Light: | Sausage Multihead Weighing Packaging Machine,30P/M Multihead Weighing Packaging Machine,Multihead Weighing Machine 1000g |
||

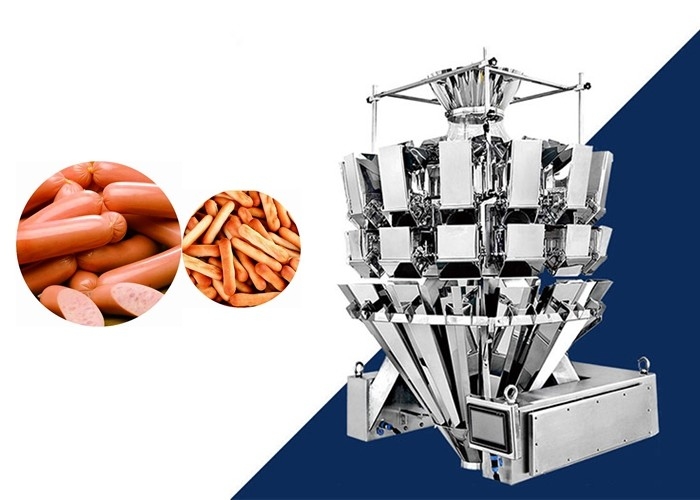

The Stick-Shaped Products Multihead Weigher Packaging Machine is a new product that especially weighs for long stick-shaped products, such as a chopstick, bean curd stick, sausage, salty sticks, finger biscuit, pencil, etc. This Multihead Weigher with its great performance on long stick products, it can make sure the products drop out of discharge chute directly orderly.
Features
In the operation of the amplitude of each wire can be adjusted independently, make the material more even.
Mechanical character
1. Special rotary top cone dispenses products evenly to each linear feeder pan.
2. One-on-one collecting chutes design of this multihead weigher machine helps to discharge the sticks to the packing machine vertically.
3. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.
4. Reversible motor on vibrator helps the dropping of sticks from topcone to linear feeder trays more effectively.
5. Special hopper design to keep the material in a vertical state.
6. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing.
Technical specification
|
Model |
JW-AS14 |
JW-A10 |
JW-A14 |
JW-AM14 |
|
Identify Code |
AS14-1-9 |
A10-1-9 |
A14-1-9 |
AM14-1-9 |
|
Weighing Range |
3-200g |
10-1000g |
10-1500g |
10-3000g |
|
Accuracy |
X(0.5) |
X(0.5) |
X(0.5) |
X(1) |
|
Max Speed |
60P/M |
30P/M |
60P/M |
60P/M |
|
Hopper Volume |
0.5L |
2.5L |
2.5L |
5L |
|
Control Panel |
7” Touch Screen |
|||
|
Options |
Dimple Plate/Timing Hopper/Printer/Reject Device |
|||
|
Driving System |
Step Motor |
|||
|
Power Requirement |
220V/1100W/50/60Hz/10A |
220V/2000W/50/60Hz/12A |
220V/2000W/50/60Hz/12A |
220V/2000W/50/60Hz/12A |
|
Packing Dimension(mm) |
1190(L)x970(W)x950(H) |
1620(L)x1100(W)x1420(H) |
1750(L)x1130(W)x1420(H) |
2195(L)x1380(W)x2060(H) |
|
Gross Weight |
240kg |
380kg |
490kg |
750kg |
Application
It is suitable for weighing stick-shaped products, such as sausage, salty sticks, chopsticks, pencil, etc. max 200mm length.
Products
A.Products: Currently only a few combination weigher manufacturing enterprises such as Ishida,Kenwei who use a "stable time development model" in program design and development. This development model is the core element to ensure weigher be in long-time stable operation and make material saving maximize.
B. Advantages: The main advantage is reflected in weighing accuracy, which indicates that the average error between actual weight and displayed weight is smaller, it could help customers save materials; The same interval time for hopper doors repeat open and close make vibration torque consistency, which makes the mechanical structure mutual friction loss is minimized and the machine can be long-term stable operation.
C.Accuracy: Taking into consideration that the mode of the main vibrator and linear vibrator and vibration absorption ability of the framework that has an effect to weigher accuracy, Kenwei independent research and develop both standard and high amplitude vibrators to meet the needs of different materials. Also control the vibrating time and amplitude separately by control systems to automatically adjust the linear vibrator amplitude, which makes the material flow optimization; About the middle base of machine case, we always use 2.5mm-3.0mm stainless steel sheet and strengthen the internal structure by providing reinforcement to ensure the machine's rigidity. Some models take the machine case and middle base integrated, through a combination of AD converter module and anti-jamming technology, which effectively reduce the vibrating interference and ensure the accuracy of the machine running.
D.Molds and components: Key components such as hoppers, vibrating pans, waterproof cover are made by high-precision molds, which have high consistency and interchangeability; Sensors we use is from Japan and Germany well-known brand; Circuit board is in excellent industrial-standard
design, which the chip selection, PCB design, and protection are based on the industrial-grade materials and the production process.
