| Identify Code: | AM14-2-11 | Weighing Range: | 10-3000g |
|---|---|---|---|
| Accuracy: | X(1) | Max Speed: | 80P/M |
| Hopper Volume: | 7.5L | Control Panel: | 7”Touch Screen |
| Options: | Dimple Plate/Timing Hopper/Printer/Reject Device | Power Requirement: | 220V/1100W/50/60Hz/12A |
| High Light: | 14 Heads Salad Multihead Weigher,5L Salad Multihead Weigher,3000g Potatoes Multihead Weighing Machine |
||

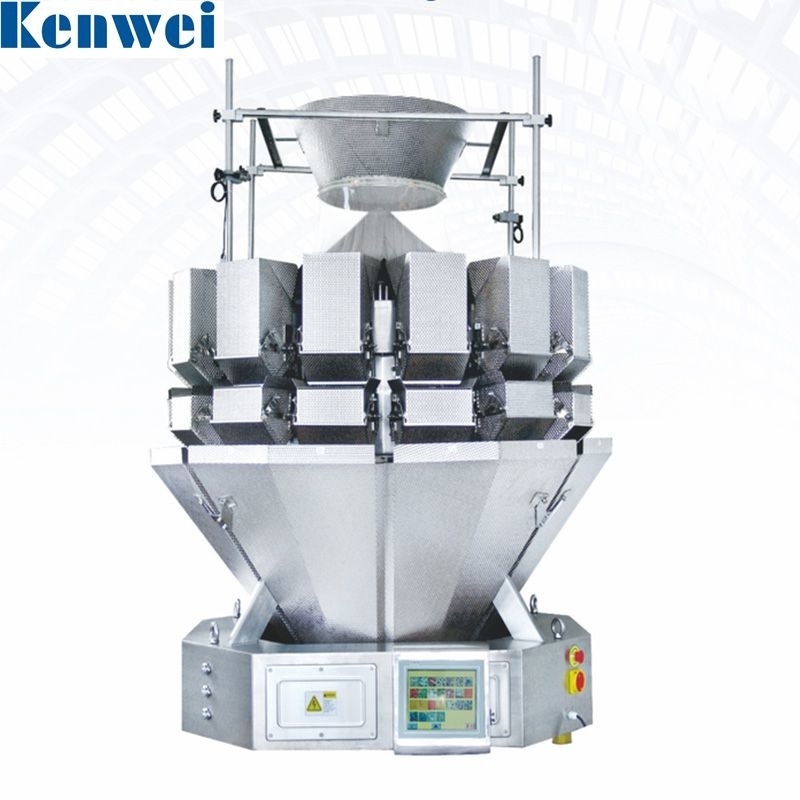

The automatic 14 heads salad multihead weigher is the second-generation salad scale developed by Kenwei. It is equipped with a 5-liter large-capacity hopper, which reduces the number of additions and improves work efficiency. The machine body with sus 304/316 for option and IP65 dust and waterproof design.It suitable for weighing large volume products such as potatoes,tomatoes,onions,fruits,vegetable and salad with large target weight.
Features
1.Professional digital weighing module with high precision and good stability.
2.Cleaning function: able to make the hoppers in opening state for easy daily cleaning and maintenance.
3.No products auto pause function can improve weighing stability and accuracy.
4.Linear amplitude can be adjusted independently, can make the feeding more uniform.
5.Machine body with SUS304/316 for option and IP65 dust and waterproof design.
6.100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.
Mechanical character
1. Speed adjustable rotary top cone is suitable for different product feeding.
2. It can be finely regulated the opening & closing speed of hopper door according to the features of items to be weighed, and prevent crushing and blocking of material.
3. IP65 grade water-proof &dust-proof design. It's clear and sanitary with all stainless still parts.
4. The declinational special linear vibrator pan, ensure smooth feeding.
5. 60° dimple discharge chute contributes to less sticky problems.
6. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing.
Technical specification
|
Model |
JW-AM10 | JW-AM14 | |
| Identify Code | AM10-1-11 | AM14-1-11 | |
| Weighing Range | 100-3000g | 100-3000g | |
| Accuracy | X(1) | X(1) | |
| Max Speed | 50P/M | 80P/M | |
| Hopper Volume | 5L | ||
| Control Panel | 7”Touch Screen | ||
| Options |
Timing Hopper/Printer/Reject Device |
||
| Power Requirement | 220V/1500W/50/60Hz/10A | 220V/1500W/50/60Hz/12A | |
| Packing Dimension(mm) | 1910(L)x1290(W)x1810(H) | 2195(L)x1380(W)x2060(H) | |
|
Gross Weight |
700kg | 850kg | |
Application
It is suitable for weighing large volume products such as potatoes, tomatoes, onions, fruits,vegetable and salad with large target weight.
According to the material characteristics and requirements of different industries, we developed various machine types for counting (small pouches into the big bag), noodles, frozen foods, peppers, stick-shaped products, product -mixing, cheeses, salads, and so on. Products are free to choose two kinds of modes combination of operation such as digital and modular, single outlet and multiple discharge outlet, high precision, and high speed. Also, we can develop software systems independently to meet more customized requirements for customers.
Products have passed CE certificate, PA / MC certificate, OIML certificate, and GSG enterprise qualification certificate, widely used in food, medicine, chemical, hardware, commodity fields. We reached strategic cooperation with customers from more than 100 countries and regions around the world, and we will continue to create more economic benefits for our customers.
