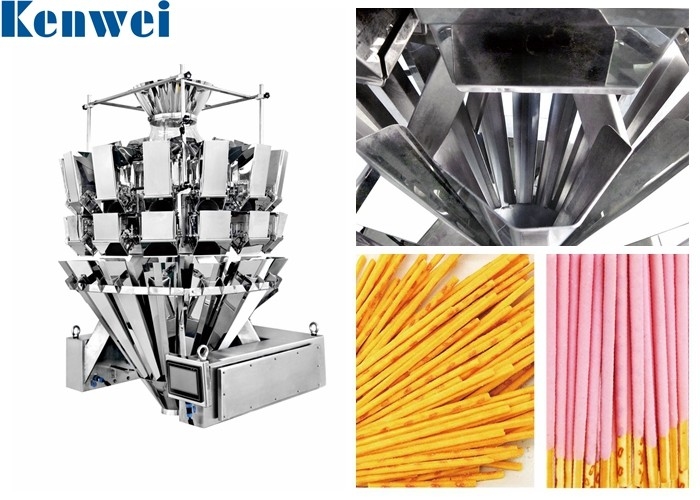

7in Touch Screen Multihead Weighing Packaging Machine Stick Shaped

Hot Sales Stick-Shaped Products Multihead Weigher Packaging Machines

Features

1. Adopt high precision and high standard special sensors.
2. Factory parameter setting recovery function, support multi-segment weight calibration.

3. In the operation of the amplitude of each wire can be adjusted independently, make the material more even.

4. Round tube device added to the bucket center to make sure the sticks drop vertically from feed bucket to weigh bucket
5. Friendly HMI, similar with mobile phone operation icons, make operation more easily and simple.
6. 100 program capacity can meet the various weighing requirements, a user-friendly help menu in touch screen contributes to easy operation.

Mechanical character

1. Special rotary top cone dispenses products evenly to each linear feeder pan.

2. One-on-one collecting chutes design of this multihead weigher machine helps to discharge the sticks to the packing machine vertically.

3. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.

4. Reversible motor on vibrator helps the dropping of sticks from topcone to linear feeder trays more effectively.

5. Special hopper design to keep the material in a vertical state.

6. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing.

Technical specification

Application

It is suitable for weighing stick-shaped products, such as sausage, salty sticks, chopsticks, pencil, etc. max 200mm length.

Products

A.Products: Currently only a few combination weigher manufacturing enterprises such as Ishida,Kenwei who use a "stable time development model" in program design and development. This development model is the core element to ensure weigher be in long-time stable operation and make material saving maximize.

B. Advantages: The main advantage is reflected in weighing accuracy, which indicates that the average error between actual weight and displayed weight is smaller, it could help customers save materials; The same interval time for hopper doors repeat open and close make vibration torque consistency, which makes the mechanical structure mutual friction loss is minimized and the machine can be long-term stable operation.

C.Accuracy: Taking into consideration that the mode of the main vibrator and linear vibrator and vibration absorption ability of the framework that has an effect to weigher accuracy, Kenwei independent research and develop both standard and high amplitude vibrators to meet the needs of different materials. Also control the vibrating time and amplitude separately by control systems to automatically adjust the linear vibrator amplitude, which makes the material flow optimization; About the middle base of machine case, we always use 2.5mm-3.0mm stainless steel sheet and strengthen the internal structure by providing reinforcement to ensure the machine's rigidity. Some models take the machine case and middle base integrated, through a combination of AD converter module and anti-jamming technology, which effectively reduce the vibrating interference and ensure the accuracy of the machine running.

D.Molds and components: Key components such as hoppers, vibrating pans, waterproof cover are made by high-precision molds, which have high consistency and interchangeability; Sensors we use is from Japan and Germany well-known brand; Circuit board is in excellent industrial-standard

design, which the chip selection, PCB design, and protection are based on the industrial-grade materials and the production process.
