Product Details:
Payment & Shipping Terms:
|
| Identify Code: | A10-1-7 | Weighing Range: | 10-1000g |
|---|---|---|---|
| Accuracy: | X(0.5) | Max Speed: | 65P/M |
| Hopper Volume: | 1.6/2.5L | Control Panel: | 7”Touch Screen |
| Options: | Dimple Plate/Timing Hopper/Printer/Reject Device | Power Requirement: | 220V/1500W/50/60Hz/12A |
| High Light: | Frozen Food Multihead Weighing Machine,2.5L Hoppers Multihead Weighing Machine,7in Touch Screen Multihead Weigher |
||

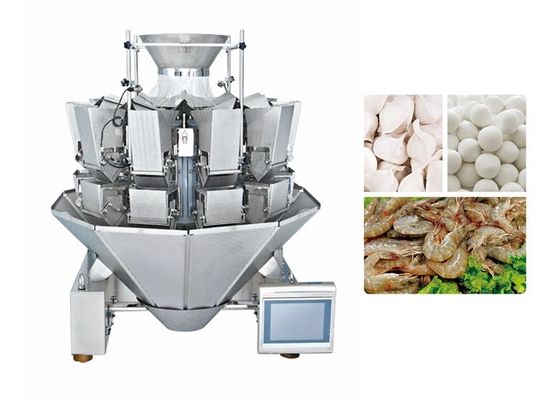

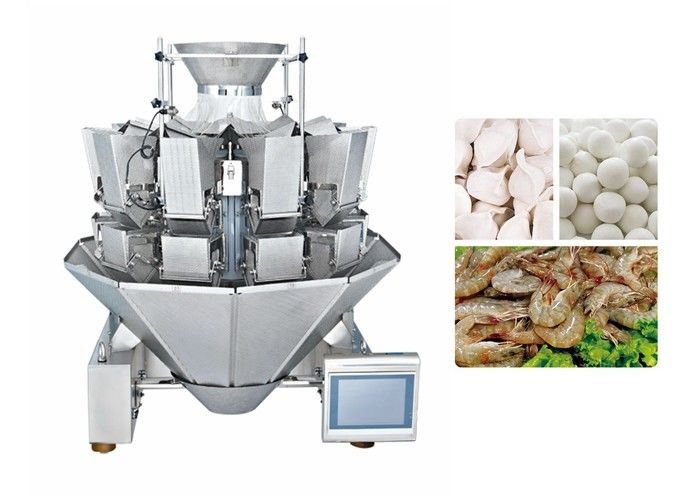

2.5L Hoppers Frozen Food Multihead Weighing Machine
Frozen Food processing factories require speed and efficiency in order to maintain Nutrition and appearance while controlling costs. Weighing scales and systems from kenwei can be built into existing food processing lines to monitor yield and prevent waste.Kenwei 's weigher is suitable for weighing frozen foods, such as frozen fishes, fruit, frozen dumplings, rice dumplings, etc. we want to give you peace of mind and make sure you don’t lose the efficiency you’ll get used to with our machines.
Features
1.7 inches touch screen with multiple languages.
2.Special load cell with high precision and high standard.
3.The linear amplitude can be independently adjusted at run time
4.Program recovery to reduce operational failures and support multi-stage weight calibration
5.No automatic suspension function, improve the stability and accuracy of weighing
6.Store 100 sets of parameter Settings achieve a variety of material requirements, in the help menu, easy to learn to use.
7.The most efficient and accurate weight calculation by computer
Mechanical character
1.Ip65 cabinet design, dimple plate for food contact parts.
2.Air pressure system built-in cabinet prevents the electronic components from damage because of humidity.
3.No special tools are required to remove or reinstall parts.
4.Uniform design standards contribute to better interchangeability for spare parts.
5.The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.
6.Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing.
7.Operation is more Simple, perfect. It is the first choice of the food packaging industry to Improve production efficiency, reduce Labor Intensity, improve the grade of packaging equipment.
Technical specification
| Model | JW-A10 |
| Identify Code | A10-1-7 |
| Weighing Range | 10-1000g |
| Accuracy | X(0.5) |
| Max Speed | 65P/M |
| Hopper Volume | 1.6L/2.5L |
| Control Panel | 7” Touch Screen |
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device |
| Driving System | Step Motor |
| Power Requirement | 220V/1000W/50/60Hz/10A |
| Packing Dimension(mm) | 1620(L)x1100(W)x1110(H) |
| Gross Weight | 380kg |
Kenwei machinery advantages
1. Customized group: We have a technical team with a rapid response for special projects to meet the different requirements for customers.
2. Meet individual needs: Based on the actual situation of customers, research the production characteristics, make comprehensive assessment planning programs with high adaptability.
3.Rigorous design: Rigorous weighing system design and development process to promote the overall mold, internal, and external process guidelines to enhance the accuracy and stability of the production line.
4.Serialization products: We have a series of products to adapt to a variety of materials, and to solve the weighing materials adaptability problem.
