Product Details:
Payment & Shipping Terms:
|
| Identify Code: | JW-E4230 | Weighing Range: | 10-1000g |
|---|---|---|---|
| Max Speed: | 65P/M | Bag Size: | LXW=(60~350)mmX(80~250)mm |
| Film Width(mm)(mm): | 180-520mm | Power Requirement: | 3.4KW/220V/50(60)Hz |
| Machine Size: | 1465(L)X1040(W)X1470(H) | Weight: | 400KG |
| High Light: | 520mm Weighing And Packing Machines,100g Weighing And Packing Machines,520mm automatic pouch packing machine |
||
Economic Automatic Multi-Function Weighing And Packing Machine For Packaging Pouch

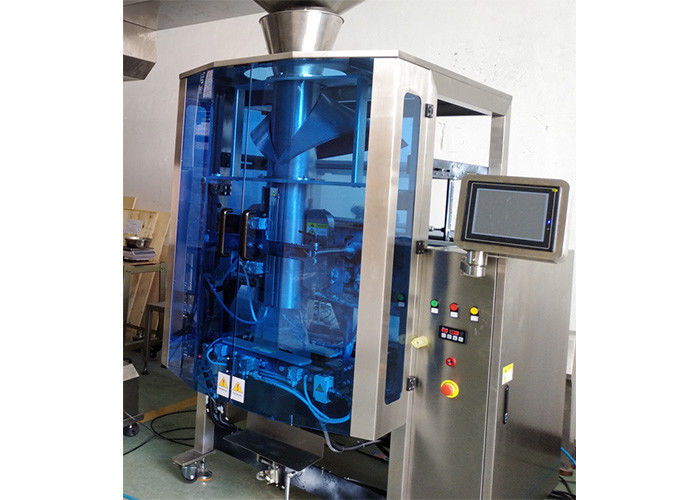

The economical type vertical packaging machine is composed of 304 stainless steel frame, blue perspective plexiglass door, special electric control cabinet and 7 inch true color touch screen, with the function of opening door and shutting down. The price is affordable, suitable for all kinds of packaging materials, all kinds of leisure food, frozen food, coffee beans, oats, sugar, salt, rice, hardware, etc.
Features
1. Control :PLC program control, with fault display and alarm functions.
2. Bag-making: Automatic bag-making machine. The bag-making machine is arranged vertically. The neckline of the bag-making machine is a concave and convex lapel.
3. Horizontal sealing: The cylinder is the driving force of horizontal sealing. The heating of the sealing roller is continuously heated. The sealing temperature is controlled by the temperature. , with clamping stop protection
4. Vertical sealing: cylinder adopts longitudinal sealing drive. There are two types of sealing: clamping and sticking. The heating mode of sealing roller is continuous heating. Sealing temperature is controlled by temperature.
5. Film drawing: The film drawing mode is synchronous belt drawing film, the film drawing power is servo drive, using conical tooth transmission.
6. Film discharge: pneumatic or mechanical film hanging shaft, equipped with code adjustment, color code tracking adjustment; With or without film alarm function, storage film detection and other functions.
7. Frame: stainless steel or carbon steel frame, blue perspective plexiglass door, special electric control cabinet, 7-inch true color touch screen, with the function of door opening and closing protection.
Technical specification
| Model | JW-E3220 | JW-E4230 | JW-E5235 | JW-E6240 | JW-E7245 | JW-E8350 |
| Film width | 140～320mm | 160～420mm | 180～520mm | 180～620mm | 180～720mm | 180～830mm |
| Bag size | L*W=(60～200)mm*(60～150)mm | L*W=(60～300)mm*(70～200)mm | L*W=(60～350)mm*(80～250)mm | L*W=(80～400)mm*(80～300)mm | L*W=(90～450)mm*(70～350)mm | L*W=(90～500)mm *(60～400)mm |
| Packing speed | 15～70bags/min | 15～60bags/min | 15～60bags/min | 15～60bags/min | 0～70bags/min | 5～50bags/min |
| Power requirement | 2.5KW/220V/50/60HZ | 3.4KW/220V/50/60HZ | 3.4KW/220V/50/60HZ | 3.6KW/220V/50/60HZ | 5.5KW/220V/50/60HZ | 5KW/220V/50/60HZ |
| Gas pression | 0.6~0.8Mbra | 0.6~0.8Mbra | 0.6~0.8Mbra | 0.6~0.8MPa | 0.6~0.8MPa | 0.6~0.8MPa |
| Gas consumption | 0．5m３/min | 0．6m３/min | 0．7m３/min | 0．8m３/min | 0．4m３/min | 1.2m３/min |
| Machine size | L*W*H=1158mm*930mm*1213mm | L*W*H=1465mm*1040mm*1470mm | L*W*H=1540mm*1160mm*1600mm | L*W*H=1640mm*1226mm*1709mm | L*W*H=1748mm*1344mm*1955mm | L*W*H=1848mm*1544mm*2155mm |
| Machine weight | 350Kg | 400Kg | 450Kg | 550Kg | 680Kg | 800Kg |
Application
Applicable bag type: pillow bag, angled bag, edge bag.
Applicable membrane materials: all kinds of composite membranes, single-layer PE membranes, film thickness range: 0.04mm ~ 0.15mm. Applicable packaging materials: all kinds of snack foods, quick-frozen foods, milk powder, pet food, coffee, cereal, granulated sugar, salt, puffed food, rice, medicinal materials, tea, hardware, etc.
Optional Device
| Gusset device | Nitrogen charging device |
| Chain bag | vibrating device |
| Punching device | Sealing device |
| Exhaust/Inflatable devices | Easy tear device |
| PE film sealing | Bag support device |
| Anti-Static electricity | Evacuating device |
| Horizontal seal cooling blowing device | Film rectify deviation adjust device |
| Automatic feeding device |
Common related equipment
| Multihead weigher/Liner weigher | Cup measuring machine |
| Auger filler | Liquid pump |
Technology:
A. Through ten years of efforts, we build the technical team with high-quality professional engineers more than 30% in rich industry experience. They are with comprehensive capacity of design and development, manufacturing, marketing, installation and commissioning, technical training, and after-sales service for a fully automatic weighing packaging system.
B. We have a technical team with a rapid response for special projects to meet the different requirements for customers.
C.Kenwei has a rigorous new product development process, which promotes the guidelines for overall mold, internal & external craft, also enhances the consistency and stability of machine quality.
