Product Details:
Payment & Shipping Terms:
|
| Identify Code: | A10-2-9 | Weighing Range: | 100-1000g |
|---|---|---|---|
| Accuracy: | X(0.5) | Max Speed: | 60P/M |
| Hopper Volume: | 3L | Control Panel: | 10.1”Touch Screen |
| Options: | Timing Hopper/Printer/Reject Device | Power Requirement: | 220V/1400W/50/60Hz/6A |
| High Light: | 14 Head Multihead Weighing Machine,Breakage Proof Multihead Weighing Machine,14 Head multi head scale |
||

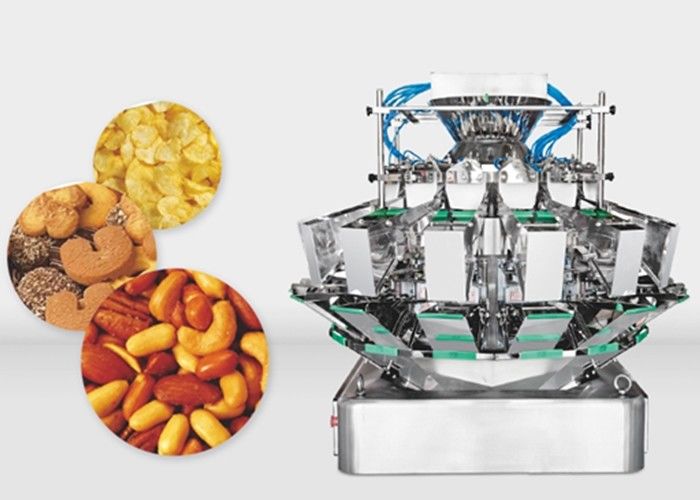

Breakage Proof 14 Head Multihead Weighing Machine
This product is specially developed for the quantitative weighing of fresh fruit, ice, crackers, peanuts, and other fragile materials. A shatter-proof weighing hopper allows the material to slide into the hopper, reduces the impact on the material, and effectively protects the integrity of the material. The scale is suitable for the food industry.
Features
1. Intelligent fault alarm, convenient maintenance.
2. Adopt special sensors of high precision and high standard.
3. New highly integrated modular design using CAN bus technology.
4. High-speed staggered discharge function can effectively prevent material blockage.
5. Modular electric heating plate with intelligent multi-sampling stable mode to make the weighing more accurate.
6.Modbus industry-standard communication protocol realizes the interface between multi-head weighing machine and packing machine.
Mechanical character
1. Chute feeding hopper causes the material to slide in.
2. Gently tilt the chute to slide the material to the next step.
3. Tilting inside the weighing bucket can shorten the descending height in advance.
4. The vertical baffle line vibrates the plate to completely separate the materials.
5. Reduce the drop height in all directions so that the material is fully protected.
Technical specification
| Model | JW-A10 | JW-A14 |
| Identify Code | A10-2-9 | A14-2-9 |
| Weighing Range | 10-1000g | 10-1000g |
| Accuracy | X(0.5) | X(0.5) |
| Max Speed | 40P/M | 60P/M |
| Hopper Volume | 3L | |
| Control Panel | 10.1” Touch Screen | |
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device | |
| Driving System | Step Motor | |
| Power Requirement | 220V/1400W/50/60Hz/6A | 220V/2200W/50/60Hz/10A |
| Packing Dimension(mm) | 1620(L)x1080(w)x1050(H) | 1700(L)x1200(w)x1150(H) |
| Gross Weight | 400kg | 490kg |
Application
It is suitable for weighing crunchy materials such as fresh fruit ice crepes and dried peanuts etc.
Kenwei machinery advantages
1.Serialization products: We have a series of products to adapt to a variety of materials, and to solve the weighing materials adaptability problem.
2.Stable precision mode: We use a "stable time development model" in program design and development. This development mode is the core element to ensure weigher be in long-time stable operation and make material saving maximize.
3.Good service:Kenwei service department is including test group, planning group, door-to-door service groups, etc, mainly to provide commission for specific materials and make commission regularity indicators so that to find out the suitable material for the machine;
4.Test: Simulate customer production materials, equipment operation, and other work environments, as much as possible to restore the customer's production status, access to get the real test data.
