Product Details:
Payment & Shipping Terms:
|
| Identify Code: | A10-2-1 | Weighing Range: | 10-1000g |
|---|---|---|---|
| Accuracy: | X(0.5) | Max Speed: | 65P/M |
| Hopper Volume: | 3L | Control Panel: | 10.1”Touch Screen |
| Options: | Dimple Plate/Timing Hopper/Printer/Reject Device | Packing Dimension(mm): | 1620(L)x1080(W)x1220(H) |
| Gross Weight: | 400kg | Power Requirement: | 220V/1500W/ 50/60Hz/8A |
| Driving System: | Step Motor | ||
| Highlight: | 1220mm 10 Head Multihead Weigher,8A 10 Head Multihead Weigher,8A linear weigher machine |
||

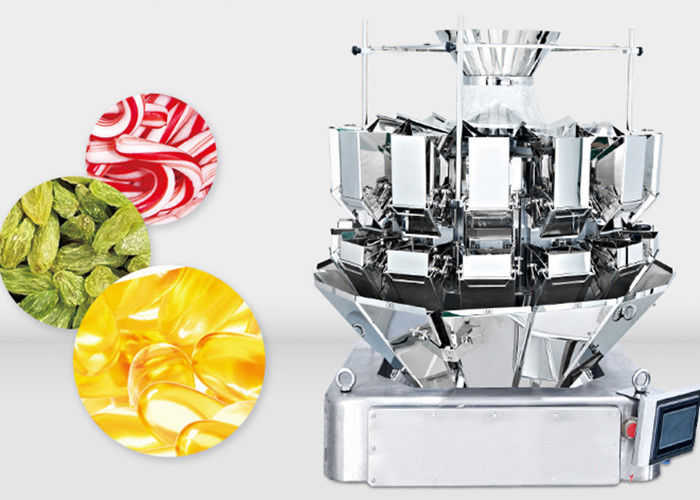

High-Speed Advanced 10 Head Multihead Weigher For Weighing Snack Food
The 10 head advanced multihead weigher is the combination weigher of Kenwei second-generation combination weigher, which has faster speed and higher precision, and weighs a wider range of materials. It is suitable for quantitative weighing of all kinds of granular, flake, strip, round and irregular materials, as well as all kinds of puffed, hardware and other materials. The maximum weighing speed of the 14 advanced combination weigher is 120 bags per minute. The hopper equipped with a 3L capacity is suitable for customers who weigh faster with a symmetrical weight.
Features
1. Adopt special sensor with high precision and high standard.
2. Intelligent multiple sampling stable mode, more accurate weighing.
3. Intelligent fault alarm prompt, more convenient maintenance.
4. High-speed asynchronous discharge function, effectively prevent materials from blocking.
5. Modular and CAN bus technology, more efficient and stable.
6. Modbus industry-standard communication protocol realizes the combination of the combination weigher and packaging machine interface.
Mechanical character
1. 3L hopper, suitable for all kinds of common standard materials, with wide application range.
2. The large-arc angle mouth shape chassis, the overall structure is more coordinated and beautiful.
3. The Stable actuator structure makes the hopper run more stable and the readings more accurate.
4. Uniform design standards, using the mold manufacturing process, the interchangeability of various parts is stronger.
5. The Integral machine frame and middle seat enhance the strength of the machine, making the hopper's stabilization time shorter.
Technical specification
| Model | JW-A10 | JW-A14 |
| Identify Code | A10-2-1 | A14-2-1 |
| Weighing Range | 10-1000g | 10-1500g |
| Accuracy | X(0.5) | X(0.5) |
| Max Speed | 65P/M | 120P/M |
| Hopper Volume | 3L | |
| Control Panel | 10.1” Touch Screen | |
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device | |
| Driving System | Step Motor | |
| Power Requirement | 220V/1500W/50/60Hz/8A | 220V/1500W/50/60Hz/10A |

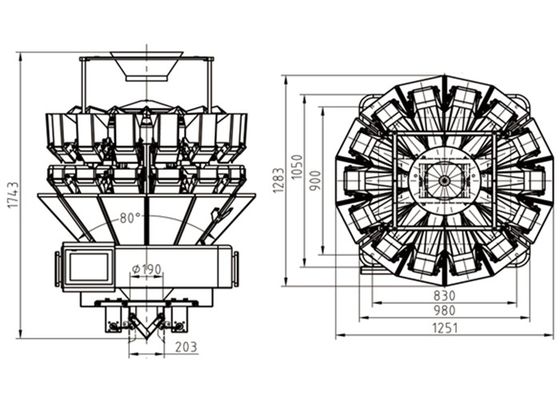

| Packing Dimension(mm) | 1620(L)X1080(W)X1220(H) | 1700(L)X1200(W)X1300(H) |
| Gross Weight | 400kg | 500kg |
Application
It is suitable for the quantitative weighing of all kinds of granular, flake, strip, round and irregular materials, as well as all kinds of puffed, hardware, and other materials. Such as sunflower seeds, peanuts, nuts, almonds, raisins, candy, pistachios, potato chips, shrimp sticks, dumplings, meatballs, etc.

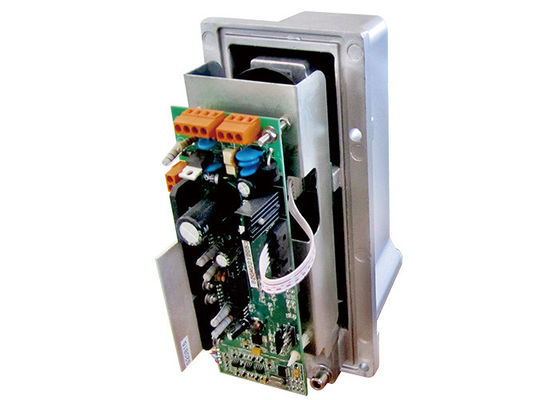

Kenwei independently researched and developed both standard and high amplitude vibrators. The vibration time and vibration amplitude of each vibrator can be automatically adjusted to optimize the material flow. Multi-head weigher central chassis is made from 2.5mm thickness stainless plate and strengthened structurally with internal strengthening rib. The AD conversion module combines technical modification with anti-interference technology to effectively minimize various vibration interference and ensure the accuracy of the whole machine.
According to the material characteristics and requirements of different industries, we developed various machine types for counting (small pouches into the big bag), noodles, frozen foods, peppers, stick-shaped products, product -mixing, cheeses, salads and so on. Products are free to choose two kinds of modes combination of operation such as digital and modular, single outlet and multiple discharge outlet, high precision, and high speed. Also, we can develop software system independently to meet more customized requirements for customers.
