Product Details:
Payment & Shipping Terms:
|
| Identify Code: | A14-1-9 | Weighing Range: | 10-1500g |
|---|---|---|---|
| Accuracy: | X(0.5) | Max Speed: | 60P/M |
| Hopper Volume: | 2.5L | Control Panel: | 7”Touch Screen |
| Options: | Dimple Plate/Timing Hopper/Printer/Reject Device | Power Requirement: | 220V/2000W/50/60Hz/12A |
| High Light: | 14 Head Multihead Weighing Machine,combination Multihead Weighing Machine,combination 14 head weigher |
||

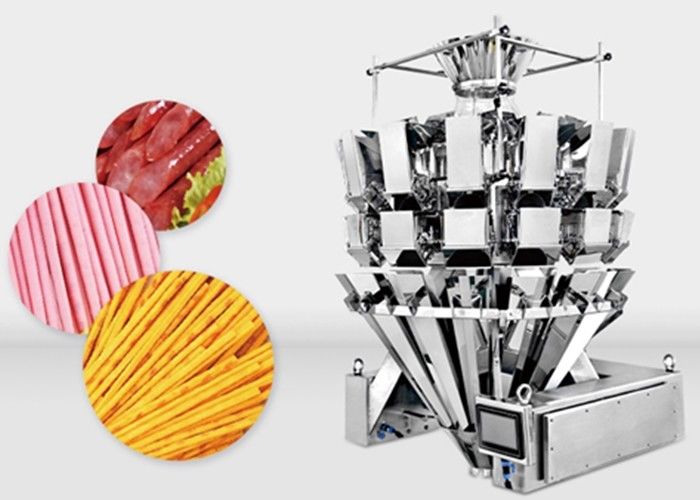

14 Head Combination Weigher Machine With Hopper For Weighing Stick Shaped Products
The combination weigher is specially designed for weighing sausage, finger cake, chopsticks and other slender materials. The maximum length is 200mm. The special hopper and independent long material chute keep the long material in the vertical state when entering the packing machine, which maximizes the integrity of the material.
Features
1.During operation, the amplitude of each line can be adjusted independently to make the material more uniform.
2.No automatic suspension function, improve the stability and accuracy of weighing
3.15 languages, easy to operate, suitable for the global market.
4.100 program capacity, can meet all kinds of weighing requirements, touch screen humanized help menu, easy to operate.
5.Adopt high precision and high standard special sensor.
6.Factory parameter setting recovery function, support multi - section weight calibration.
Mechanical character

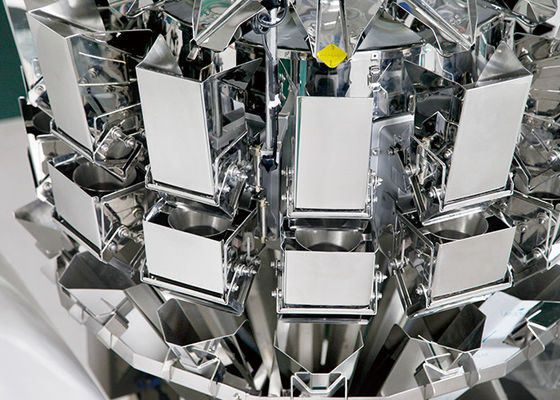

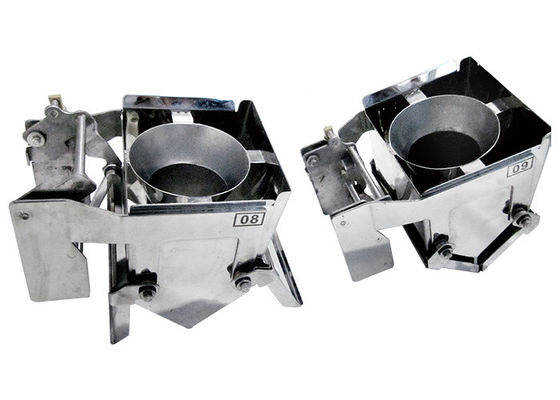

1. Special hopper design can keep the material in a vertical state.
2. Special linear feeding tray to ensure the smooth feeding process.

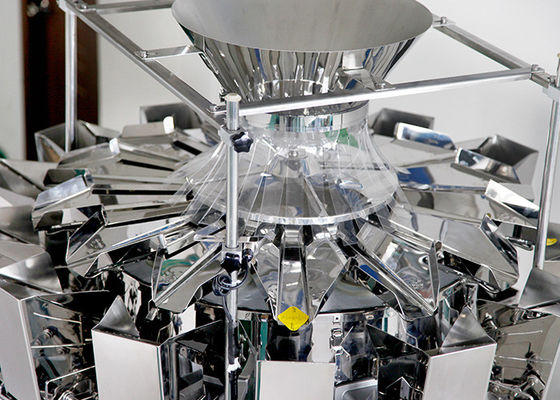

3. A special rotating top cone distributes the product evenly to each linear feeding plate.
4. Independent discharging tank ensures that the material is discharged vertically into the packaging machine.
5. Optional weighing material inspection, accurate control of feeding time, material thickness, to ensure the weighing accuracy.
6. The whole shell of the casting aluminum thickener improves the strength of the machine and reduces the stability time of the sample.
Technical specification
|
Model |
JW-AS14 |
JW-A10 |
JW-A14 |
JW-AM14 |
|
Identify Code |
AS14-1-9 |
A10-1-9 |
A14-1-9 |
AM14-1-9 |
|
Weighing Range |
3-200g |
10-1000g |
10-1500g |
10-3000g |
|
Accuracy |
X(0.5) |
X(0.5) |
X(0.5) |
X(1) |
|
Max Speed |
60P/M |
30P/M |
60P/M |
60P/M |
|
Hopper Volume |
0.5L |
2.5L |
2.5L |
5L |
|
Control Panel |
7” Touch Screen |
|||
|
Options |
Dimple Plate/Timing Hopper/Printer/Reject Device |
|||
|
Driving System |
Step Motor |
|||
|
Power Requirement |
220V/1100W/50/60Hz/10A |
220V/2000W/50/60Hz/12A |
220V/2000W/50/60Hz/12A |
220V/2000W/50/60Hz/12A |
|
Packing Dimension(mm) |
1190(L)x970(W)x950(H) |
1620(L)x1100(W)x1420(H) |
1750(L)x1130(W)x1420(H) |
2195(L)x1380(W)x2060(H) |
|
Gross Weight |
240kg |
380kg |
490kg |
750kg |
Application
It is suitable for weighing stick-shaped products, such as sausage, salty sticks, chopsticks, pencil, etc. max 200mm length.
Kenwei machinery advantages
1.Stable precision mode: We use a "stable time development model" in program design and development. This development mode is the core element to ensure weigher be in long-time stable operation and make material saving maximize.
2.Test: Simulate customer production materials, equipment operation, and other work environments,as much as possible to restore the customer's production status, access to get the real test data.
3.Good service:Kenwei service department is including test group, planning group, door-to-door service groups, etc, mainly to provide commission for specific materials and make commission regularity indicators so that to find out the suitable material for the machine;
4. Customized group: We have a technical team with a rapid response for special projects to meet the different requirements for customers.
5. Meet individual needs: Based on the actual situation of customers, research the production characteristics, make comprehensive assessment planning programs with high adaptability.
