Product Details:
Payment & Shipping Terms:
|
| Identify Code: | A10-1-7 | Weighing Range: | 10-1500g |
|---|---|---|---|
| Accuracy: | X(0.5) | Max Speed: | 120P/M |
| Hopper Volume: | 1.6/2.5L | Control Panel: | 7”Touch Screen |
| Options: | Dimple Plate/Timing Hopper/Printer/Reject Device | Power Requirement: | 220V/1500W/50/60Hz/12A |
| High Light: | Dumplings 14 head weigher,60Hz 14 head weigher,60Hz multiweigh systems |
||

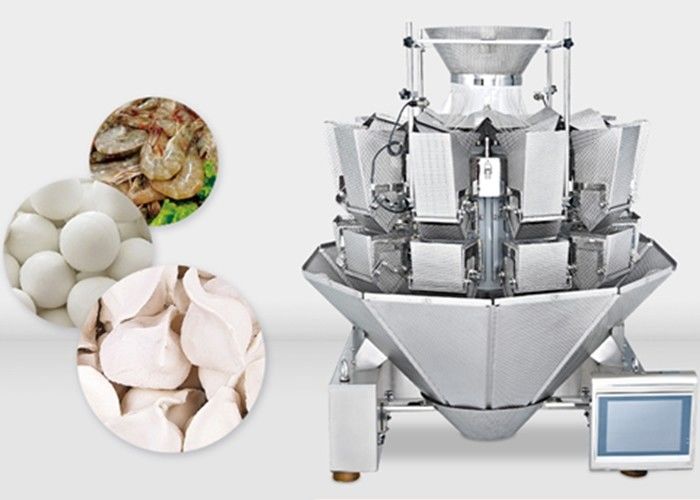

14 Head Frozen Food Weigher With 1.6L Hopper For Weighing Frozen Fished, Fruit, Dumplings

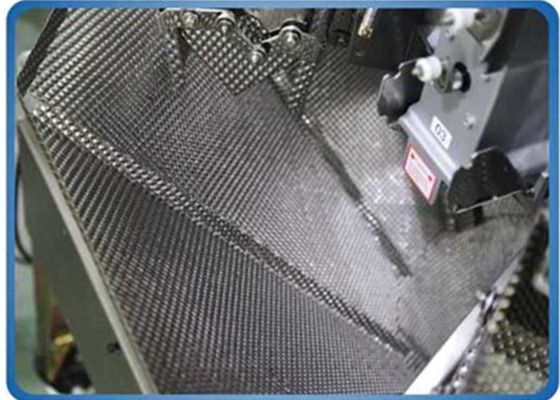

The frozen food multi-head scale is suitable for quantitative weighing of various quick-frozen materials, such as quick-frozen dumplings, dumplings, shrimp and other quick-frozen products. IP65 waterproof grade of the case, especially for maximum protection of the parts of the case from moisture. The part of the multi-head weighing machine contacting with the material is made of the pattern plate material, which can effectively prevent the frozen food from sticking.
Application
It is suitable for weighing frozen foods, such as frozen fishes, fruit, frozen dumplings, rice dumplings, etc.
Features
1.The Global marketplace offers 15 languages.
2.Special load cell with high precision and high standard.
3.The linear amplitude can be independently adjusted at run time
4.Program recovery to reduce operational failures and support multi-stage weight calibration
5.No automatic suspension function, improve the stability and accuracy of weighing
6.Store 100 sets of parameter Settings, achieve a variety of material requirements, in the help menu, easy to learn to use.
Mechanical character
1. Ip65 box design, trough plate for food contact parts.
2. Uniform design standards are helpful to improve the interchangeability of spare parts.
3. Built-in air pressure system to prevent damage of electronic components due to humidity.
4. Optional weighing material inspection, accurate control of feeding time and material thickness, to ensure the weighing accuracy.
5. The whole shell of the casting aluminum thickener improves the strength of the machine and reduces the stability time of the sample.
Technical specification
| Model | JW-A10 | JW-A14 | |
| Identify Code | A10-1-7 | A14-1-7 | |
| Weighing Range | 10-1000g | 10-1500g | |
| Accuracy | X(0.5) | X(0.5) | |
| Max Speed | 65P/M | 120P/M | |
| Hopper Volume | 1.6L/2.5L | ||
| Control Panel | 7” Touch Screen | ||
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device | ||
| Driving System | Step Motor | ||
| Power Requirement | 220V/1000W/50/60Hz/10A | 220V/1500W/50/60Hz/12A | |
| Packing Dimension(mm) | 1620(L)x1100(W)x1110(H) | 1750(L)x1130(W)x1200(H) | |
| Gross Weight | 380kg | 490kg | |
Kenwei machinery advantages
1. Customized group: We have a technical team with a rapid response for special projects to meet the different requirements for customers.
2. Meet individual needs: Based on the actual situation of customers, research the production characteristics, make comprehensive assessment planning programs with high adaptability.
3.Rigorous design: Rigorous weighing system design and development process to promote the overall mold, internal, and external process guidelines to enhance the accuracy and stability of the production line.
4.Serialization products: We have a series of products to adapt to a variety of materials, and to solve the weighing materials adaptability problem.
