Product Details:
Payment & Shipping Terms:
|
| Identify Code: | AM14-2-11 | Weighing Range: | 10-3000g |
|---|---|---|---|
| Accuracy: | X(1) | Max Speed: | 80P/M |
| Hopper Volume: | 7.5L | Control Panel: | 7”Touch Screen |
| Options: | Dimple Plate/Timing Hopper/Printer/Reject Device | Power Requirement: | 220V/1100W/50/60Hz/12A |
| High Light: | 7.5L Hoppers salad weigher,14 Head salad weigher,3000g multiweigh multihead weigher |
||

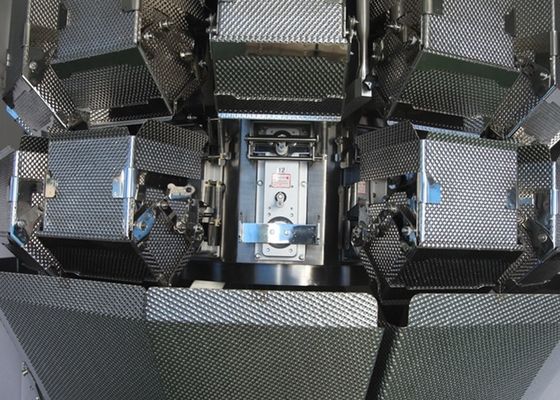

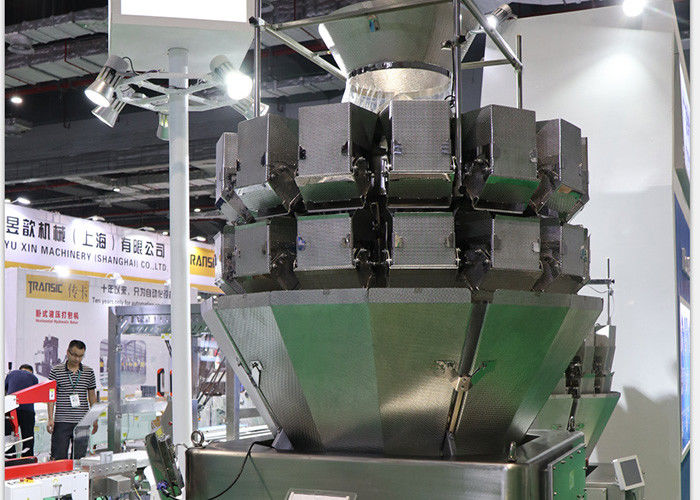

7.5L Timing Hoppers 3000g 14 Head Salad Weigher
The salad weigher is the second-generation salad scale developed by Kenwei. It is equipped with a 7.5-liter large-capacity hopper, which reduces the number of additions and improves work efficiency. Suitable for vegetable salad, fruit salad, potatoes, onions, tomatoes, fruits and other vegetables, fruits, such as large target weight or large-capacity materials quantitative weighing.
Features
1. Special load cell with high precision and high standard.
2. Module electric board, and with intelligent multiple sampling stable mode, make weighing higher accurate.
3. Intelligent fault alarm, convenient for maintenance.
4. High-speed staggered discharging function, effectively prevents blocking materials.
5. New highly integrated modular design, using CAN bus technology.
6. Modbus industrial standard communication protocol realizes the multihead weigher and packaging machine interface.
Mechanical character
Technical specification
| Model | JW-AM14 | JW-AM16 |
| Identify Code | AM14-2-11 | AM16-2-11 |
| Weighing Range | 10-3000g | 10-3000g |
| Accuracy | X(1) | X(1) |
| Max Speed | 80P/M | 120P/M |
| Hopper Volume | 7.5L | |
| Control Panel | 10.1”Touch Screen | |
| Options | Timing Hopper/Printer/Reject Device | |
| Driving System | Step Motor | |
| Power Requirement | 220V/1500W/50/60Hz/12A | 220V/2000W/50/60Hz/16A |
| Packing Dimension(mm) | 2080(L)x1540(W)x1830(H) | 2200(L)x1540(W)x1900(H) |
| Gross Weight | 870kg | 870kg |
Application
It is suitable for the quantitative weighing of large target weights or large-capacity materials such as vegetable salads, fruit salads, potatoes, onions, tomatoes, cherry tomatoes and other fruits and vegetables.
According to the material characteristics and requirements of different industries, we developed various machine types for counting (small pouches into the big bag), noodles, frozen foods, peppers, stick-shaped products, product -mixing, cheeses, salads, and so on. Products are free to choose two kinds of modes combination of operation such as digital and modular, single outlet and multiple discharge outlet, high precision, and high speed. Also, we can develop software systems independently to meet more customized requirements for customers.
Products have passed CE certificate, PA / MC certificate, OIML certificate, and GSG enterprise qualification certificate, widely used in food, medicine, chemical, hardware, commodity fields. We reached strategic cooperation with customers from more than 100 countries and regions around the world, and we will continue to create more economic benefits for our customers.
