Product Details:
Payment & Shipping Terms:
|
| Identify Code: | JW-B25 | Weighing Range: | 10-3000g |
|---|---|---|---|
| Max Speed: | 100P/M | Power: | 4.4kw |
| Voltage: | 220V | Packaging Type: | Bags |
| High Light: | 35p/min Box Type Packaging Machine,SGS Fruit Box Type Packaging Machine,4.4kw Auto Box Packaging Machine |
||
Auto Meal Box type Packaging Machine For Fruit

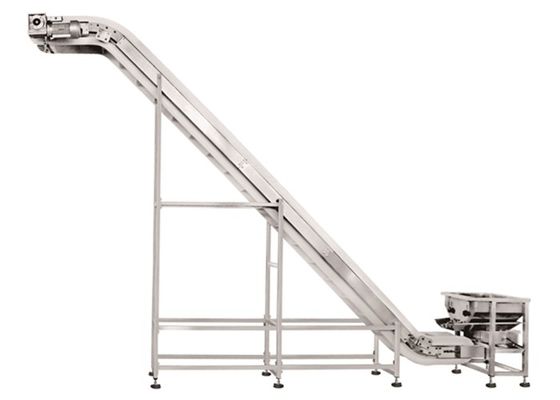

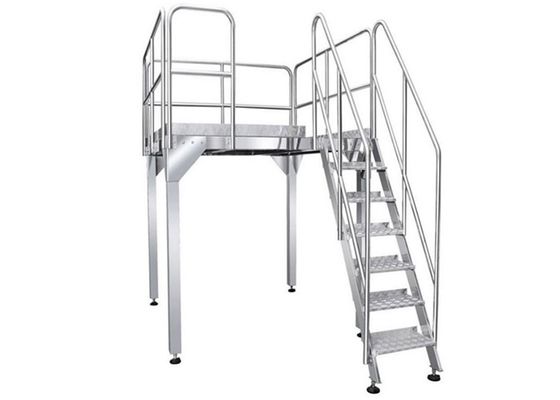

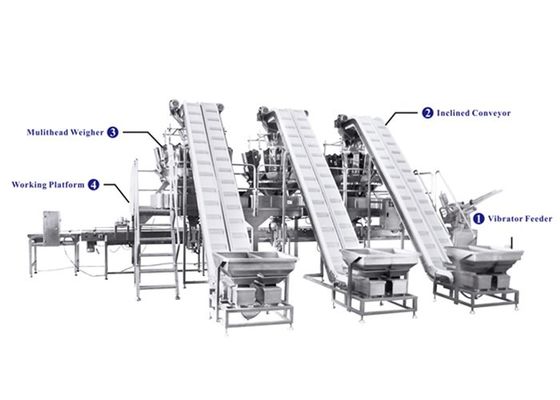

We are engaged in manufacturing various types of packaging machines. Highly reliable and consistent in the given operation, these are designed and developed to serve every purpose and requirements of all relevant industries. The entire range comprises of Elevator System, VFFS Machine, Wrapping Machine, and more. The system including an Automatic box dropping device, inclined conveyor, multi-head weigher, working platform, filling machine, Finished product transportation.
Mechanical character
| Series model | Typical Machine | Speed | Max weight |

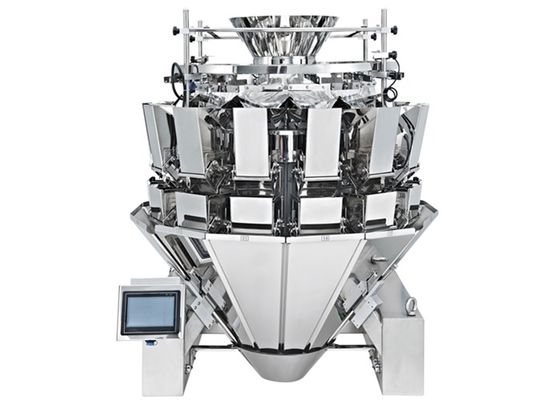

| Single box packaging system | 10 head multihead weigher | 35p/min | 1000g |
| One divides into two box packaging system | 14 head multihead weigher | 60p/min | 800g |
1. Suitable for a variety of materials.
2. High precision, double-export efficiency increased by about 1 time.
3. Automatically complete the whole process of feeding, weighing, filling, date printing, and labeling.
Suitable for weighing candy, melon seeds, jelly, frozen, pistachios, peanuts, nuts, almonds, raisins and other snack foods, also suitable for puffed food; hardware, plastic compounds and other granular, flake, strip, round and irregular Shaped material.
Optional equipment:
|
Check weigher: Reject unqualified products, it can sort the product and make statistics (if already equipped with other weight detection equipment then no need to use this machine) |
|
Horizontal metal detector: It is used to detect the metal which mixed during the production process. It is suitable to use after finishing packaging (if already equipped with other metal detectors then no need to use this machine). |
|
Dropped metal detector: It is used to detect the metal which mixed during the production process. It is suitable to use before packaging. It is installed between a weigher and a packaging machine, space-saving (if already equipped with other metal detectors then no need to use this machine). |
|
Metal detector combined with check weigher: It is used to detect the metal and check weight, combined the check weigher with a metal detector, save cost, and less commissioning and maintenance time. |
|
Stuffing machine: It is used to stuffing the small bag into the cup, like desiccant, the flavoring bag, etc. |
|
Capping equipment: Capping after sealing the cup, the form of capping including capping alone or capping with add teaspoon and flavoring bag, etc. |
|
Labeller: The label on the cup, the form of label including unilateral label, bilateral label, etc. |
|
Material diverter: When need to fill more than one cup at one time, then use this device. Such as filling 2 cups in one-time use one to two diverter, filling 4 cup in one-time use one to four diverter. |
Company profile
Guangdong Kenwei Intellectualized Machinery Co., Ltd, is currently a large production base of multihead weighers. As a professional manufacturer, we devote to R&D and manufacturing of multihead weighers, linear weighers, check weighers, metal detectors with high speed and high accuracy. We also provide customers with complete automatic weighing and packaging systems to meet the various customized requirements.
Having a high quality and R&D lab in the industry, our quality department covers 16 inspection points such as incoming materials checking, routing inspection, QE, pre-aging, and post-aging inspection, finishing product inspection, and a complete quality management system with restricted control of upper and lower processes. Our products passed the environment simulation test, frequency, waterproof test, salt spray test, amplitude, and elastic stress-strain test, functional simulation test, 7*24 hours continuous aging test, and so on. The core components such as circuit boards and touch screens are all passed for nonstop aging test for more than 72 hours at 50℃ environment because we devote ourself to manufacturing craftsmanship products with high quality. The failure rate of our products is less than 0.5% within 1 year and less than 1% within 2 years.
Kenwei independently researched and developed both standard and high amplitude vibrators. The vibration time and vibration amplitude of each vibrator can be automatically adjusted to optimize the material flow. Multi-head weigher central chassis is made from 2.5mm thickness stainless plate and strengthened structurally with internal strengthening rib. The AD conversion module combines technical modification with anti-interference technology to effectively minimize various vibration interference and ensure the accuracy of the whole machine.
