Product Details:
Payment & Shipping Terms:
|
| Identify Code: | A14-2-9 | Weighing Range: | 100-1000g |
|---|---|---|---|
| Accuracy: | X(0.5) | Max Speed: | 60P/M |
| Hopper Volume: | 3L | Control Panel: | 10.1”Touch Screen |
| Options: | Timing Hopper/Printer/Reject Device | Power Requirement: | 220V/2200W/50/60Hz/10A |
| High Light: | 220V Multihead Weighing Machine,3L Multihead Weighing Machine,220V multihead weigher |
||

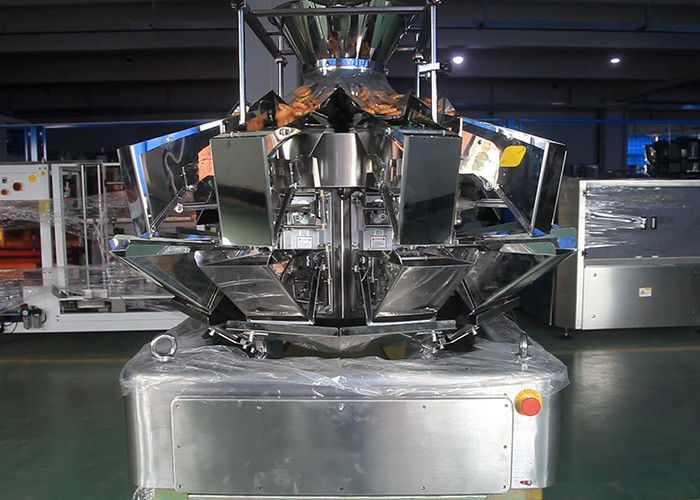

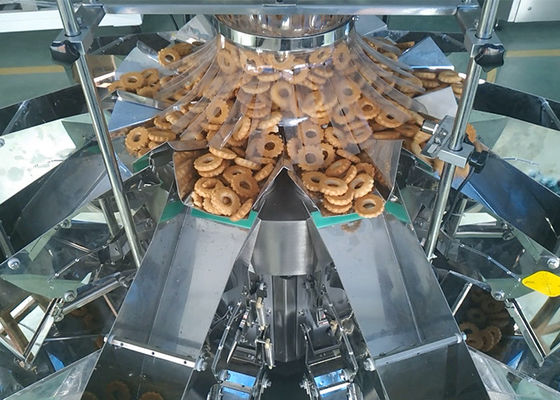

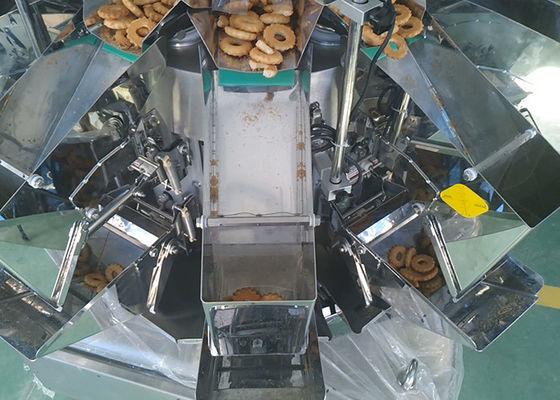

Breakage - Proof 14 head Multihead Weigher For Weighing Breakable Materials
The breakage-proof weigher is a multihead weigher specially developed for quantitative weighing of fragile materials such as fresh fruits, ice cubes, thin biscuits, peanuts, etc. The type feed hopper of the breakage-proof weigher allows materials to be fed in a sliding manner, reducing the impact of material received, effectively protecting the integrity of the materials. The weigher is suitable for use in the food industry.
Features
1. Intelligent fault alarm, easy maintenance.
2. Use high-precision, high-standard special sensors.
3. New highly integrated modular design using CAN bus technology.
4. High-speed staggered discharge function, effectively prevent materials from clogging.
5. Module electric board, and has an intelligent multi-sampling stable mode, making weighing more accurate.
6. The Modbus industry-standard communication protocol implements the interface between multi-head scales and packaging machines.
Mechanical character
1. The chute feed hopper makes the material slide feed.
2. Gently tilt the chute to make the material completely slide to the next step.
3. The internally inclined weighing hopper can shorten the descending height in advance.
4. The vertical baffle line vibration plate makes the materials completely separated.
5. Reduce the drop height in all directions so that the material can be completely protected.
Technical specification
| Model | JW-A10 | JW-A14 |
| Identify Code | A10-2-9 | A14-2-9 |
| Weighing Range | 10-1000g | 10-1000g |
| Accuracy | X(0.5) | X(0.5) |
| Max Speed | 40P/M | 60P/M |
| Hopper Volume | 3L | |
| Control Panel | 10.1” Touch Screen | |
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device | |
| Driving System | Step Motor | |
| Power Requirement | 220V/1400W/50/60Hz/6A | 220V/2200W/50/60Hz/10A |
| Packing Dimension(mm) | 1620(L)x1080(w)x1050(H) | 1700(L)x1200(w)x1150(H) |
| Gross Weight | 400kg | 490kg |
Application
It is suitable for weighing crunchy materials such as fresh fruit ice crepes and dried peanuts etc.
Company profile
Guangdong Kenwei Intellectualized Machinery Co., Ltd, is currently a large production base of multihead weighers. As a professional manufacturer, we devote to R&D and manufacturing of multihead weighers, linear weighers, check weighers, metal detectors with high speed and high accuracy. We also provide customers with complete automatic weighing and packaging systems to meet the various customized requirements.
KENWEI, located in Hi-tech Industrial Zone, owns a modern workshop over 21000m2 with an annual production capacity of more than 5,000 sets of multihead weighers. We have a high-quality team that professional technicians more than 30% with comprehensive capacity from design and development, manufacturing, marketing, installation and commissioning, technical training, after-sales services, and providing automatic weighing packaging system customization. With the development of international markets, more and more marketing and service networks are established all over the world. We won the trust and good reputations for good and fast services, which also help us to establish a good brand image in the packaging machinery industry. We are now selling machines to more than 100 countries in the world.
Specialized in the production of automatic weighing and packaging machinery for 14 years, we devote ourselves to the complete solution of automatic packaging. Now we become the professional multihead weigher (linear weigher/check weigher/metal detector etc ) manufacturing enterprise with large production capability and wide influence in the world. We have successively won the “Guangdong Industry-University-Research Science and Technology Project Award”, “high technology enterprise”, “Technology Innovation Award” in Chinese food processing and packaging industry, Ringier Multihead Combination Weighing Technology Innovation Award, a number of “Utility Model Patent Certificate” and many other honorary certificates.
If you got any problem when using the machine and the videos can not help, our technician will have video chatting with you to fix your problem
