Product Details:
Payment & Shipping Terms:
|
| Identify Code: | JW-B34 | Weighing Range: | 10-3000g |
|---|---|---|---|
| Max Speed: | 100P/M | Power: | 4.4kw |
| Voltage: | 220V | Packaging Type: | Bags |
| High Light: | kenwei carton packaging line,500g carton packaging line,kenwei carton packing machine |
||
Carton Packing Line

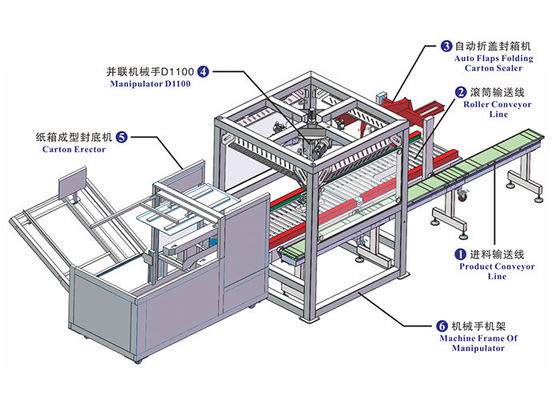

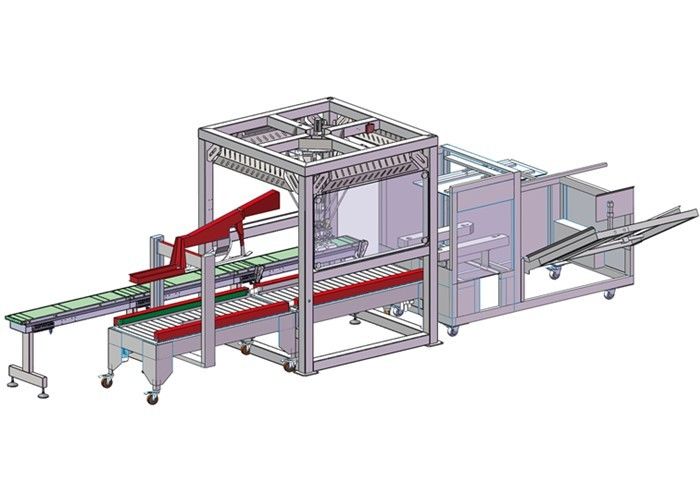

Carton Packing Line System including Product Conveyor Line, Roller Conveyor Line, Auto Flaps Folding Carton Sealer, Machine Frame Of Manipulator, Carton Erector, Manipulator D1100.Parallel manipulators apply to food, medicine, spices, plastics, handicrafts, electronics, and various types of materials sorting and transporting of other industries. With the ability to quickly pick and place, the visual system automatically positioning crawl, according to product requirements for automatic pelletizing sorting.
Mechanical character
|
1. The unpacking function has the function of tape and carton shortage alarm; the carton can be stored vertically, and the feeding does not need to stop the machine; it is suitable for use in the same size carton, also can support the expandable application of different size carton. |
|
2. The robot is simple in modularity, easy to install and the commission has a long service life and low maintenance costs. Flexible action, versatility, high precision, and stability. |
| 3. The robot has the ability to quickly select and place, the vision system automatically locates multi-angle grabs and automatically palletizes the products according to product placement requirements. |
|
4. Manipulator touch screen man-machine interface, rich instruction set, users can carry out secondary development, can meet a wide range of application needs. |
| 5. When the box is sealed, the cover can be automatically folded, and the upper and bottom of the carton are sealed at one time. |
Features
The system includes the automatic unpacking and sealing of the carton, the automatic packing of the parallel robot, the automatic sealing, and the intermediate connecting conveying system to complete the packing and sealing function. It can complete a series of automatic operations such as automatically unpacking and sealing the bottom if the stacking carton, automatically packing the material products and sealing the carton. An optional visual application system is available for accurate detection and delivery of incoming materials.
Application
Applicable to the back-end packing of production lines in food, medicine, electronics, and hardware and other industries, Achieve machine intelligence to replace low-end repetitive manual work.Carton size range: 280 ≤ L ≤ 500mm, 160 ≤ W ≤ 400mm, 180 ≤ H+W/2 ≤ 500mm
Molds and components: Key components such as hoppers, vibrating pans, waterproof cover are made by high-precision molds, which have high consistency and interchangeability; Sensors we use is from Japan and Germany well-known brand; Circuit board is in excellent industrial-standard design, which the chip selection, PCB design, and protection are based on the industrial-grade materials and the production process.
Accuracy: Taking into consideration that the mode of the main vibrator and linear vibrator and vibration absorption ability of the framework that has the effect to weigher accuracy, Kenwei independent research and develop both standard and high amplitude vibrators to meet the needs of different materials. Also control the vibrating time and amplitude separately by control systems to automatically adjust the linear vibrator amplitude, which makes the material flow optimization; About the middle base of machine case, we always use 2.5mm-3.0mm stainless steel sheet and strengthen the internal structure by providing reinforcement to ensure the machine's rigidity. Some models take the machine case and middle base integrated, through a combination of AD converter module and anti-jamming technology, which effectively reduce the vibrating interference and ensure the accuracy of the machine running.
Domestic and international service
Organization:Kenwei service department is including test group, planning group, door-to-door service groups, etc, mainly to provide commission for specific materials and make commission regularity indicators so that to find out the suitable material for the machine; Also, they are responsible for customer training and online operating skills, including installation manual and maintenance manual provided. Above are customer accepted initiatives.
High efficiency: Kenwei has a high efficient service team. When customers encounter problems,98.5% of the problems get a reply within the same day, and spare part is sent within 3 days if needed.
Record: Each Kenwei machine has a product code and components number, which has a corresponding configuration, photos, and more machine detailed records so that we can help customers solve problems quickly when the problem comes. Also, the technical department makes a modular design for a unit that makes component replacement more simple and fewer troubles.
