Modular Linear Weigher Packing Machine

Modular Linear Weigher Packing Machine
Modular Linear Weigher Packing Machine Modular Linear Weigher Packing Machine Modular Linear Weigher Packing Machine

Large Image :  Modular Linear Weigher Packing Machine

Product Details:
Place of Origin: Guangdong,China
Brand Name: Kenwei
Certification: CE,SGS,OIML
Model Number: JW-AXS10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD3500-4200
Packaging Details: Wooden Crate Package
Delivery Time: 20-45 working day
Payment Terms: L/C, T/T
Supply Ability: 800 set per/year
Detailed Product Description
Identify Code: XS10-2-1 Weighing Range: 2-200g
Accuracy: X(1) Max Speed: 120P/M
Hopper Volume: 0.5L Control Panel: 7”Touch Screen
Options: Dimple Plate/Timing Hopper/Printer/Reject Device Gross Weight: 250kg
Parameters Press No.: 20 Power Requirement: 220V/80W/50/60HZ/0.4A
Packing Dimension(mm): 1450(L)x970(W)x850(H) Max Products Mixed: 10
High Light:

180g linear weigher packing machine


10 head linear weigher packing machine


Modular multiweigh multihead weigher

High-Speed Modular 10 Head Linear Weigher Machine For Weighing Powder, Granule​


The 10-head high-speed mini linear weigher uses a stepless vibration machine feeding system to make the materials more uniform. The 10-head linear scale can weigh a variety of different materials at the same time and can weigh up to 10 types of materials to achieve the packaging of mixed materials. The maximum weighing speed of the linear scale can reach 120 bags/min, which is fast and efficient.



1. Grand new modular control system.

2. Amplitude can be adjusted automatically.

3. Make mix different products weighing at one discharge.

4. Parameters can be freely adjusted according to production.

5. Adopt stepless vibrating feeding system to make products flow more fluently.


Modular Linear Weigher Packing Machine 0
Technical specification


Model JW-AXS10
Identify Code XS10-2-1
Weighing Range 2~200g
Accuracy X(1)
Max Speed 120P/M
Hopper Volume 0.5L
Parameters Press No. 20
Max Products Mixed 10
Control Panel 7” Touch Screen
Options Dimple Plate/Timing Hopper/Printer/Reject Device
Power Requirement 220V/1000W/50/60HZ/5A
Packing Dimension(mm) 1450(L)x970(W)x850(H)
Gross Weight 250KG





It is suitable for weighing slice roll or regular shape products such as sugar, salt, seed, rice, sesame, glutamate, milk powder, coffee and season powder, etc.


Modular Linear Weigher Packing Machine 1

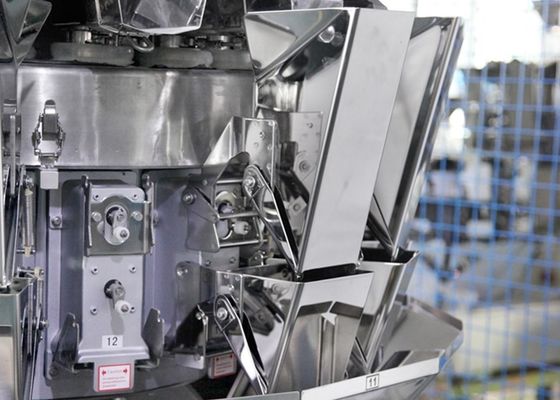

Adopting well-known Japanese and German brand load cells. Key components such as hoppers, linear pans, waterproof cover are made by high-precision molds, which contributes to high consistency and interchange-ability. The circuit board design adopts the industrial-grade design scheme, the industrial-grade material, and the manufacturing technology from the chip selection to the PCB design and the protection. The standard touch screens use an LCD screen of 50,000-hours-life, which adopts the immunity standard higher than the EC general standard industrial environment, and achieves a high-level design of 4kV.


Having a high quality and R&D lab in the industry, our quality department covers 16 inspection points such as incoming materials checking, routing inspection, QE, pre-aging, and post-aging inspection, finishing product inspection, and a complete quality management system with restricted control of upper and lower processes. Our products passed the environment simulation test, frequency, waterproof test, salt spray test, amplitude, and elastic stress-strain test, functional simulation test, 7*24 hours continuous aging test, and so on. The core components such as circuit boards and touch screens are all passed for nonstop aging test for more than 72 hours at 50environment because we devote ourself to manufacturing craftsmanship products with high quality. The failure rate of our products is less than 0.5% within 1 year and less than 1% within 2 years.


Modular Linear Weigher Packing Machine 2




Q1: How to know which one packing machine is suitable for us?
You can first tell business representatives which equipment you want to know, what material is the product, how many grams to weigh, and the range of accuracy and speed requirements. Our engineers then recommend suitable packaging machines based on these data and product characteristics.


Q2: How to operate it?
Many languages are available for global markets. There are not only detailed instructions but also machine videos for reference learning.


Q3: Why we should choose your company?
We have many years of industrial production and management experience, professional R & D, sales, after-sales team. It can perfectly solve all the problems that customers encounter from purchase to sale.


Q4: How to cooperate with you?
You only need to contact our business representative, and they will be patient to guide you through the whole process.


Q5: What's your payment way?
T/T by our bank account directly.


Q6: How about the delivery and after-sales service?
All our machines are tailor-made because different clients have different requirements, delivery will be within 20 days for the small multi-head weigher, For the large-scale machine, it takes longer. Warranty:2years(Electric accessories) and free lifetime maintenance.

If you got any problem when using the machine and the videos can not help, our technician will have video chatting with you to fix your problem
