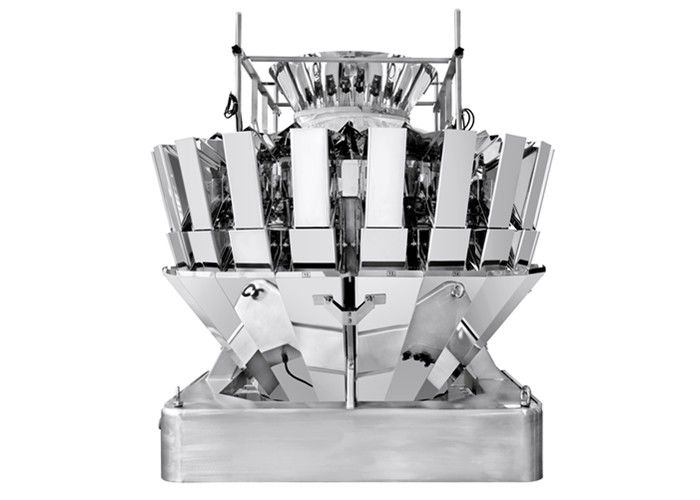

20 Head multiweigh multihead weigher

20 Head multiweigh multihead weigher
20 Head multiweigh multihead weigher

Large Image :  20 Head multiweigh multihead weigher

Product Details:
Place of Origin: Guangdong,China
Brand Name: Kenwei
Certification: CE,SGS,OIML
Model Number: JW-A20
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD4500-5400
Packaging Details: Wooden Crate Package
Delivery Time: 20-45 working day
Payment Terms: L/C, T/T
Supply Ability: 1000 set per/year
Detailed Product Description
Identify Code: A20-2-1 Weighing Range: 5-240g
Accuracy: X(0.5) Max Speed: 60X4P/M
Hopper Volume: 0.5L Control Panel: 10.1”Touch Screen
Options: Timing Hopper/Printer/Reject Device Packing Dimension(mm): 2100(L)x1480(W)x1130(H)
Gross Weight: 600kg Power Requirement: 220V/25000W/ 50/60Hz/15A
Driving System: Step Motor
High Light:

10.1'' Touch Screen multiweigh multihead weigher


nuts multiweigh multihead weigher


10.1'' Touch Screen multiweigh systems

High Speed Mixing Mode Standard 20 Head Multihead Weigher For Mixing Nuts



The 20-head high-speed mixing multihead weigher has two modes to choose from. One is the high-speed operation mode, and the maximum amount of a single material can reach 120 bags/minute. The other is the mixing mode, which can mix two kinds of materials. The mixing mode can be equipped with a double packaging machine with a maximum speed of 60 bags/min. It is a multifunctional combination scale in Kenwei multihead weigher.





1. When weighing one product, the high-speed mode can be optional.

2. The weight of the mixing can be automatically compensated by the last products.

3. Special load cell with high precision and high standard.

4. Intelligent alarm diagnosis.

5. High-speed stagger dump function.

6. New Modular and CAN bus technology, more efficient and stable.

7. Modbus Industry communication protocol.


20 Head multiweigh multihead weigher 0

Mechanical character

1. The upper storage funnel is divided into weight two different products.

2. Separate the main vibrator, control the thickness of the product independently.

3. The integral machine frame and machine cabinet contribute to more stability and higher accuracy.

4. Machine frame, discharge chute with compatible design, single discharge chute gate can change to double with twin packaging machine when just one kind of product.

5. Uniform design standards, and mold processing, contribute to better interchangeability for spare parts.

6. Stable actuator design reduces mechanical vibration and improves the load cell value accuracy.

7. Option: two outputs model.


Technical specification


Model JW-A20 JW-A20 JW-A20 JW-A20 JW-A20
Identify Code

A20-2-1(O type)

A20-2-1(O type) A20-2-3(8 type) A20-2-2(O type) A20-2-4(8 type)

Weighing Range

20-2000g(Mixing Mode)/10-1000g(Single-Mode) 10-1000g
Accuracy X(0.5)
Max Speed

65P/M(Mixing Mode)/120P/M(Single-Mode)

2x65P/M(Twin Packing Machine Mode)
Hopper Volume 1.6L 2.5L 1.6L/2.5L
Control Panel

10.1” Touch Screen

Options Dimple Plate/Timing Hopper/Printer/Reject Device
Driving System Step Motor
Power Requirement 220V/2000W/50/60Hz/16A 220V/2000W/50/60Hz/16A 220V/2000W/50/60Hz/16A 220V/2000W/50/60Hz/16A 220V/2000W/50/60Hz/16A
Packing Dimension(mm) 1700(L)x1450(W)x1450(H) 1920(L)x1650(W)x1620(H) 1880(L)x1600(W)x1240(H) 1950(L)x1650(W)x1620(H) 1880(L)x1600(W)x1240(H)
Gross Weight 850kg




It is suitable for weighing a single material with high-speed or various mixing products, such as oatmeal, mixing nuts, etc.


20 Head multiweigh multihead weigher 1



Q1: How to know which one packing machine is suitable for us?
You can first tell business representatives which equipment you want to know, what material is the product, how many grams to weigh, and the range of accuracy and speed requirements. Our engineers then recommend suitable packaging machines based on these data and product characteristics.


Q2: How to operate it?
Many languages are available for global markets. There are not only detailed instructions but also machine videos for reference learning.


Q3: Why we should choose your company?
We have many years of industrial production and management experience, professional R & D, sales, after-sales team. It can perfectly solve all the problems that customers encounter from purchase to sale.


Q4: How to cooperate with you?
You only need to contact our business representative, and they will be patient to guide you through the whole process.


Q5: What's your payment way?
T/T by our bank account directly.


Q6: How about the delivery and after-sales service?
All our machines are tailor-made because different clients have different requirements, delivery will be within 20 days for the small multi-head weigher, For the large-scale machine, it takes longer. Warranty:2years(Electric accessories) and free lifetime maintenance.

If you got any problem when using the machine and the videos can not help, our technician will have video chatting with you to fix your problem

 20 Head multiweigh multihead weigher 2

Kenwei machinery advantages


1.2 years warranty: help customer reduce service cost, less worry, less money;


2.Brand: Industry-leading enterprises, the international production scale, one of the largest manufacturing bases of producing professional combination weigher (linear weigher/check weigher/metal detector, etc.) in the world with wide influence. We are a national high-tech enterprise.


3.Ten years experience: Ten years of customized experience of weighing production system, provide high-precision, high-efficiency production line for customers, greatly enhance the customer's profitability.


4. Customized group: We have a technical team with a rapid response for special projects to meet the different requirements for customers.


5. Meet individual needs: Based on the actual situation of customers, research the production characteristics, make comprehensive assessment planning programs with high adaptability.


6.Rigorous design: Rigorous weighing system design and development process to promote the overall mold, internal, and external process guidelines to enhance the accuracy and stability of the production line.


7.Serialization products: We have a series of products to adapt to a variety of materials, and to solve the weighing materials adaptability problem.


8.Stable precision mode: We use a "stable time development model" in program design and development. This development mode is the core element to ensure weigher be in long-time stable operation and make material saving maximize.


9.Test: Simulate customer production materials, equipment operation, and other work environments,as much as possible to restore the customer's production status, access to get the real test data.


10.Good service:Kenwei service department is including test group, planning group, door-to-door service groups, etc, mainly to provide commission for specific materials and make commission regularity indicators so that to find out the suitable material for the machine;
