Air Cylinder Weighing And Packing Machines

Air Cylinder Weighing And Packing Machines
Air Cylinder Weighing And Packing Machines Air Cylinder Weighing And Packing Machines Air Cylinder Weighing And Packing Machines

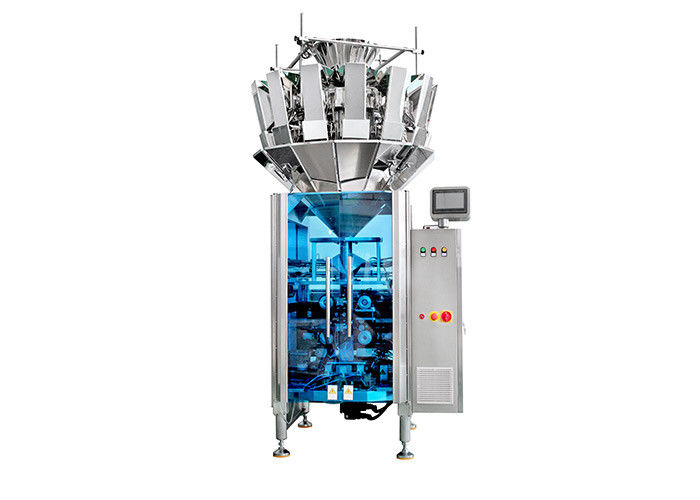

Large Image :  Air Cylinder Weighing And Packing Machines

Product Details:
Place of Origin: Guangdong,China
Brand Name: Kenwei
Certification: CE,SGS,OIML
Model Number: JW-MC4610106
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD4700-5900
Packaging Details: Wooden Crate Package
Delivery Time: 30-45 working day
Payment Terms: L/C, T/T
Supply Ability: 200 set per/year
Detailed Product Description
Identify Code: JW-MC461016-1 Weighing Range: 10-1000g
Max Speed: 65P/M Hopper Volume: 1600ml
Film Width(mm)(mm): 160-460 Bag Size(mm): 60-300(L)x70-220(W)
Packing Speed: 65 Bags/Min Horizonal Sealing Driven By: Air Cylinder
High Light:

550g Weighing And Packing Machines


1600ml Weighing And Packing Machines


1600ml multihead weigher packing machine

Standard Food Weighing And Packaging Machine For Weighing Snack Food



The standard weighing and packaging machine is a small packaging system of a standard multihead weigher and vertical packaging unit combined with an integrated machine. The machine is suitable for a wide range of applications. It is suitable for a variety of granular foods such as snack foods, pet supplies, hardware, and plastic parts. Quantitative weighing of irregular materials such as sheets and strips and the all-in-one machine is relatively cheap and cost-effective compared to other weighing and packaging systems.





Bag type: Pillow bag, Gusset bag, Side seal bag.

Film type: A variety of laminated films, single-layer PE film, film.

thickness range: 0.04mm~0.15mm.



Mechanical character


1. High-precision and high-resolution load cell.

2. 1.6L hoppers can be widely used for a variety of common standard materials and standard weights.

3. Combined multihead weigher and vertical packaging machine, fully automatic weighing, filling, date printing, packaging, and outputting.

4. The automatic fault alarm system ensures safe and reliable operation.

5. Integrated control panel, man-machine interface touch screen, easy operation, and maintenance.

6. Equipped with servo motor & film pulling system and optical tracking devices to ensure accurate bag length and color positioning.

7. Horizontal sealing by servo motor with high speed and high efficiency.

8. Cheap, economical, cost-effective, and low maintenance costs.

9. Low height, small sizes for a variety of standard workshops, and small places.


Air Cylinder Weighing And Packing Machines 0


Technical specification


Model JW-MC461016 JW-HC461416
Identify Code JW-MC461016-1 JW-HC461416-1
Heads No. 10 14
Weighing Range 10-1000g 10-1500g
Accuracy X(0.5) X(0.5)
Max speed 65P/M 100P/M
Hopper Volume 1600ml 1600ml
Film width(mm)(mm) 160-460 160-460
Bag size(mm) 60-300(L)x70-220(W) 60-300(L)x70-220(W)
Packing speed 65 Bags/Min 100 Bags/Min
Film Pulling Driven By Servo Motor Servo Motor
Horizontal Sealing Driven By Air Cylinder Servo Motor
Powder Requirement 220V/4.6KW/50/60HZ 220V/5.6KW/50/60HZ
Gas Consumption 0.6m³/min 0.2m³/min
Packing dimension(mm) 1645(L)X1140(W)X2509(H) 1800(L)X1140(W)X2659(H)
Gross weight 750Kg 800Kg





it is suitable for weighing candy, seeds, jelly, pet foods, puffy foods, pistachio, peanuts, nuts, raisins, dried fruits, frozen foods, snack foods, hardware, meatballs, etc.


Air Cylinder Weighing And Packing Machines 1





A.Products: Currently only a few combination weigher manufacturing enterprises such as Ishida,Kenwei who use a "stable time development model" in program design and development. This development model is the core element to ensure weigher be in long-time stable operation and make material saving maximize.


B. Advantages: The main advantage is reflected in weighing accuracy, which indicates that the average error between actual weight and displayed weight is smaller, it could help customers save materials; The same interval time for hopper doors repeat open and close make vibration torque consistency, which makes the mechanical structure mutual friction loss is minimized and the machine can be long-term stable operation.


C.Accuracy: Taking into consideration that the mode of the main vibrator and linear vibrator and vibration absorption ability of the framework that has an effect to weigher accuracy, Kenwei independent research and develop both standard and high amplitude vibrators to meet the needs of different materials. Also control the vibrating time and amplitude separately by control systems to automatically adjust the linear vibrator amplitude, which makes the material flow optimization; About the middle base of machine case, we always use 2.5mm-3.0mm stainless steel sheet and strengthen the internal structure by providing reinforcement to ensure the machine's rigidity. Some models take the machine case and middle base integrated, through a combination of AD converter module and anti-jamming technology, which effectively reduce the vibrating interference and ensure the accuracy of the machine running.
