Product Details:
Payment & Shipping Terms:
|
Identify Code: | G5020-2-1 | Protection Class: | IP54/IP66 |
---|---|---|---|
Speed: | 30m/min | Max Package Size(mm): | 500(W)x200(H) |
Sensitivity(mm): | Fe: φ1.2 Sus:φ2.5 | Options: | Dimple Plate/Timing Hopper/Printer/Reject Device |
Packing Dimension(mm): | 1470(L)x1050(W)x1410(H) | ||
High Light: | φ1.2mm metal detecting equipment,USB metal detecting equipment,USB metal detecting devices |

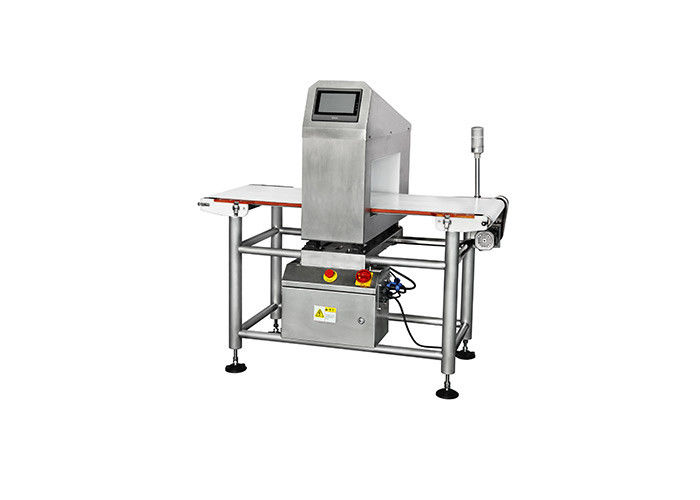

Stainless Steel Multi-Frequency Metal Detector With Conveyor Belt
The metal detector adopts multi-frequency technology to adapt to different types of products to be tested. The special conveyor belt can maximize the reduction of interference sources, operate smoothly, ensure the detection sensitivity of the whole machine, and facilitate the assembly and maintenance. At the same time, the probe has a built-in high sensitivity, which can effectively shield the signal that comes with aluminum film packaging products. It is suitable for pasta food, vegetable and fruit, quick-frozen food, and other industries.
Features
1. 7-inch full-color touch screen, pre-installed operation help menu, no need user manual.
2. Adapting multi-frequency technology for different types of products, wider versatility.
3. The system can choose the best frequency according to different product characteristics in parameters automatic setting stage.
4. Using a 32-bit microprocessor with strong digital signal analysis and processing, improving the system's sensitivity, anti-interference, and long-term stability.
5. Supporting a variety of working mode, according to the water content and the quantity of the material, it can maximize improving the detection sensitivity.
6. Backup data via USB.
7. The software upgrade is available, it’s easy for system maintenance.
Mechanical character
1. The specially made conveyor belt can minimize the interference source, make the machine running smoothly, and ensure the detection sensitivity, and it is more convenient to disassemble and maintain.
2. Stainless steel integrated frame, simple and beautiful, easy to clean and maintain.
3. The built-in high-sensitivity sensor of the detector can effectively shield the signal of the aluminum film packaging product and accurately determine the magnetic metal foreign matter in the package.
4. A variety of rejection is available.
Technical specification
Model | JW-G5020 |
Identify Code | G5020-2-1 |
Protection Class | IP54/IP66 |
Speed | 30m/min |
Max Package Size(mm) | 500(W)x200(H) |
Sensitivity(mm) | Fe: φ1.2 Sus:φ2.5 |
Power Requirement | 220V/400W/50/60Hz/2A |
Packing Dimension(mm) | 1470(L)x1050(W)x1410(H) |
Gross Weight | 200kg |
Application
Applicable to food, medicine, spices, plastics, handicrafts, electronics, toys and etc. industries on metal detecting and sorting.Specially suitable for flour made food, vegetable food,frozen food, sugar made food, pickles, etc.
Kenwei independently researched and developed both standard and high amplitude vibrators. The vibration time and vibration amplitude of each vibrator can be automatically adjusted to optimize the material flow. Multi-head weigher central chassis is made from 2.5mm thickness stainless plate and strengthened structurally with internal strengthening rib. The AD conversion module combines technical modification with anti-interference technology to effectively minimize various vibration interference and ensure the accuracy of the whole machine.
According to the material characteristics and requirements of different industries, we developed various machine types for counting (small pouches into the big bag), noodles, frozen foods, peppers, stick-shaped products, product -mixing, cheeses, salads and so on. Products are free to choose two kinds of modes combination of operation such as digital and modular, single outlet and multiple discharge outlet, high precision, and high speed. Also, we can develop software system independently to meet more customized requirements for customers.
Products have passed CE certificate, PA / MC certificate, OIML certificate, and GSG enterprise qualification certificate, widely used in food, medicine, chemical, hardware, commodity fields. We reached strategic cooperation with customers from more than 100 countries and regions around the world, and we will continue to create more economic benefits for our customers.
